Cod. 11255

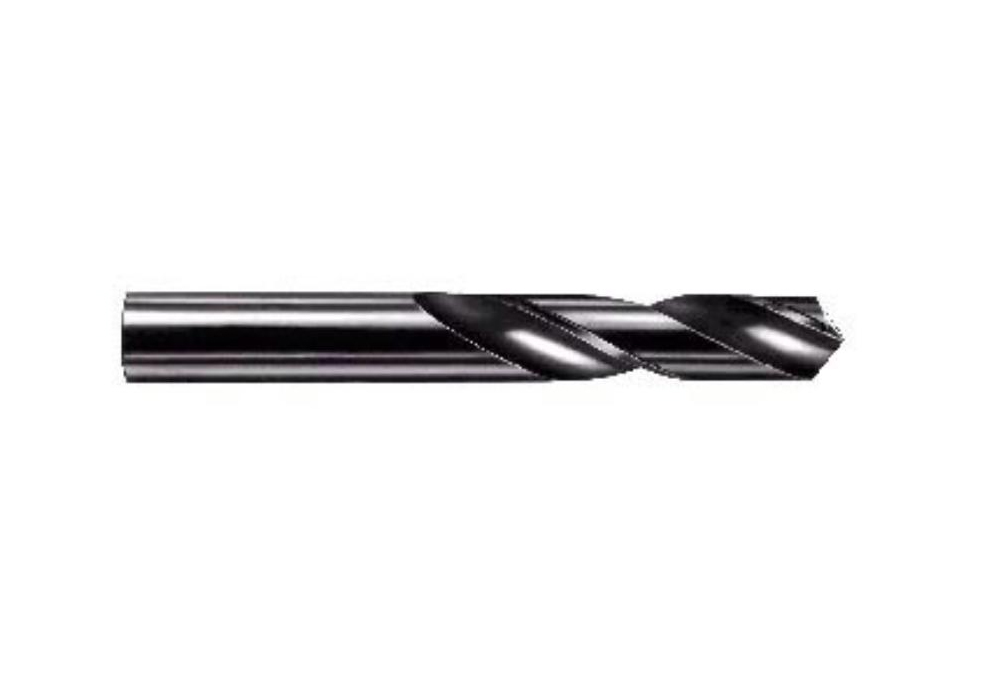

Stub drill HSS DIN 1897, type N steamed

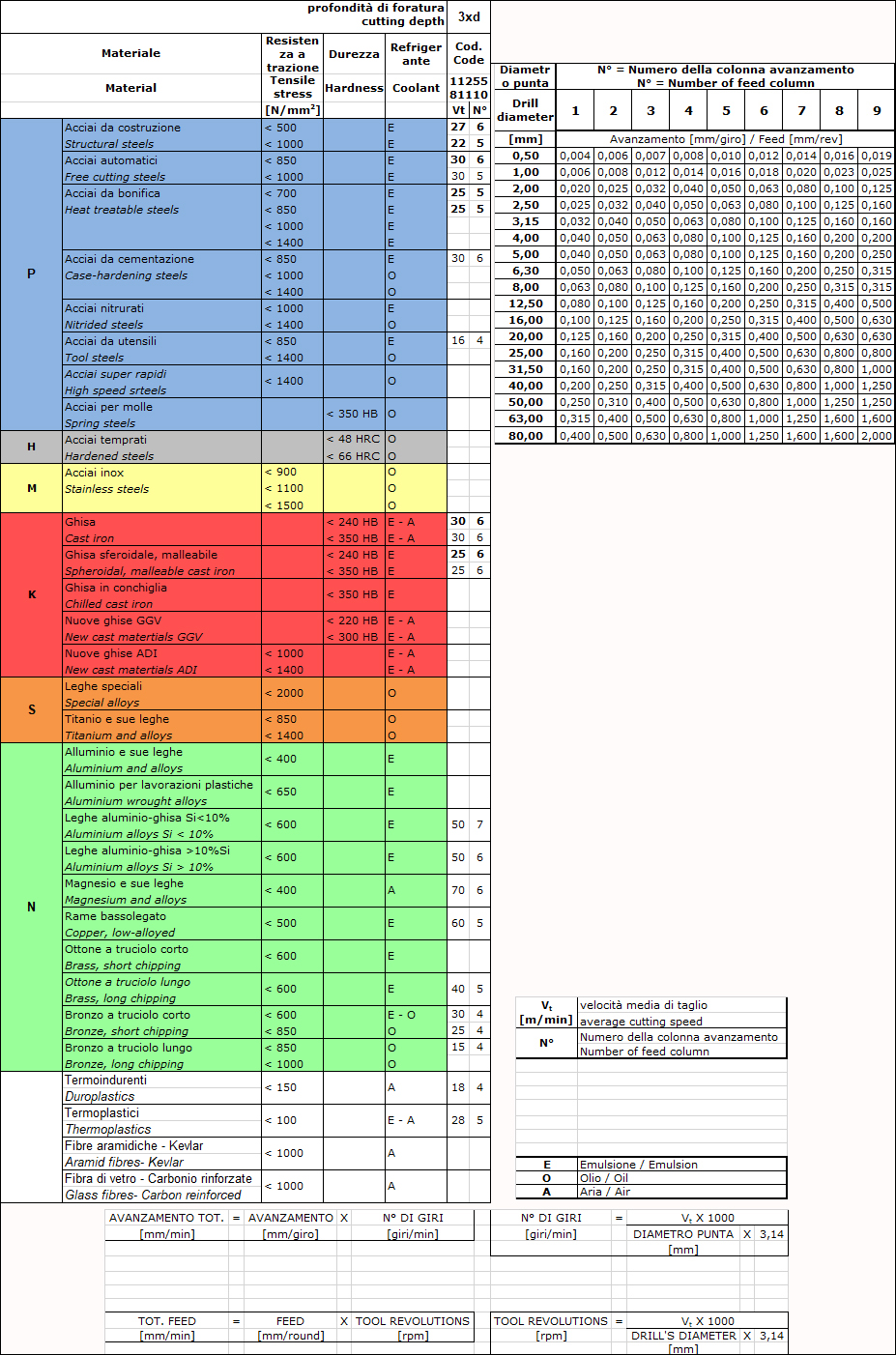

Stub drill 81110 Hartner DIN 1897, HSS with bright surface up to diameter 2.35 mm, vaporized from diameter 2.36 mm onwards, type N for materials with normal chipability. Tip for general use on automatic and turret lathes, hand drills and thin gauge materials, for steels and steel cast iron (alloyed and unalloyed), gray cast iron, malleable cast iron, ductile cast iron, sintered steel, nickel silver and graphite.
Code: 11255
Brand: Hartner
Category: Drills
Type: HSS/HSS-Co stub drills
Applications: click here
Helix orientation: left
Shank: cylindrical
Lubrification:
Lengths: Extra short
Tool Material: HSS
Tolerance: h8
Coating: Nitrided
Vertex angle: 118°
Drill shape: DIN 1897

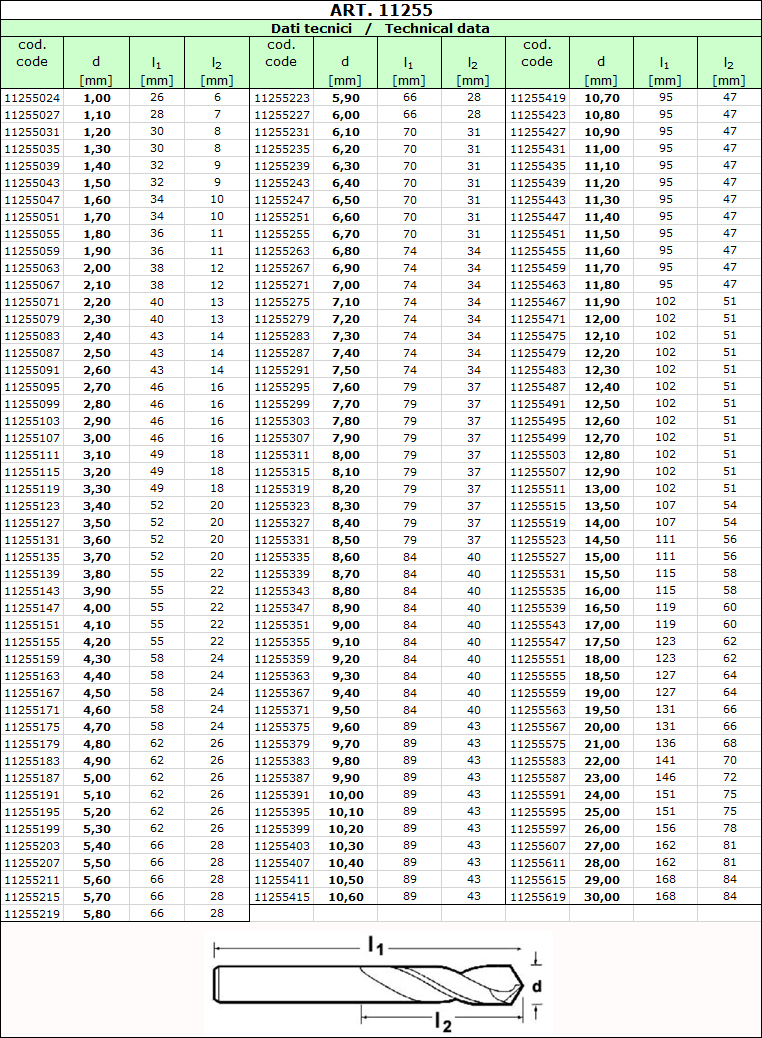

| GB Code | UM | Description | Note |
|---|---|---|---|
| 11255024 | NR | STUB DRILLS 81110 1,00 DIN1897 N HSS | |
| 11255027 | NR | STUB DRILLS 81110 1,10 DIN1897 N HSS + | |
| 11255031 | NR | STUB DRILLS 81110 1,20 DIN1897 N HSS | |
| 11255035 | NR | STUB DRILLS 81110 1,30 DIN1897 N HSS | |
| 11255039 | NR | STUB DRILLS 81110 1,40 DIN1897 N HSS | |
| 11255043 | NR | STUB DRILLS 81110 1,50 DIN1897 N HSS | |
| 11255047 | NR | STUB DRILLS 81110 1,60 DIN1897 N HSS + | |
| 11255051 | NR | STUB DRILLS 81110 1,70 DIN1897 N HSS + | |
| 11255055 | NR | STUB DRILLS 81110 1,80 DIN1897 N HSS | |
| 11255059 | NR | STUB DRILLS 81110 1,90 DIN1897 N HSS | |
| 11255063 | NR | STUB DRILLS 81110 2,00 DIN1897 N HSS | |
| 11255067 | NR | STUB DRILLS 81110 2,10 DIN1897 N HSS | |
| 11255071 | NR | STUB DRILLS 81110 2,20 DIN1897 N HSS | |
| 11255079 | NR | STUB DRILLS 81110 2,30 DIN1897 N HSS | |
| 11255083 | NR | STUB DRILLS 81110 2,40 DIN1897 N HSS steam | |
| 11255087 | NR | STUB DRILLS 81110 2,50 DIN1897 N HSS steam | |
| 11255091 | NR | STUB DRILLS 81110 2,60 DIN1897 N HSS steam | |
| 11255095 | NR | STUB DRILLS 81110 2,70 DIN1897 N HSS steam | |
| 11255099 | NR | STUB DRILLS 81110 2,80 DIN1897 N HSS steam | |
| 11255103 | NR | STUB DRILLS 81110 2,90 DIN1897 N HSS steam | |
| 11255107 | NR | STUB DRILLS 81110 3,00 DIN1897 N HSS steam | |
| 11255111 | NR | STUB DRILLS 81110 3,10 DIN1897 N HSS steam | |
| 11255115 | NR | STUB DRILLS 81110 3,20 DIN1897 N HSS steam | |
| 11255119 | NR | STUB DRILLS 81110 3,30 DIN1897 N HSS steam | |
| 11255123 | NR | STUB DRILLS 81110 3,40 DIN1897 N HSS steam | |
| 11255127 | NR | STUB DRILLS 81110 3,50 DIN1897 N HSS steam | |
| 11255131 | NR | STUB DRILLS 81110 3,60 DIN1897 N HSS steam | |
| 11255135 | NR | STUB DRILLS 81110 3,70 DIN1897 N HSS steam | |
| 11255139 | NR | STUB DRILLS 81110 3,80 DIN1897 N HSS steam | |
| 11255143 | NR | STUB DRILLS 81110 3,90 DIN1897 N HSS steam | |
| 11255147 | NR | STUB DRILLS 81110 4,00 DIN1897 N HSS steam | |
| 11255151 | NR | STUB DRILLS 81110 4,10 DIN1897 N HSS steam | |
| 11255155 | NR | STUB DRILLS 81110 4,20 DIN1897 N HSS steam | |
| 11255159 | NR | STUB DRILLS 81110 4,30 DIN1897 N HSS steam | |
| 11255163 | NR | STUB DRILLS 81110 4,40 DIN1897 N HSS steam | |
| 11255167 | NR | STUB DRILLS 81110 4,50 DIN1897 N HSS steam | |
| 11255171 | NR | STUB DRILLS 81110 4,60 DIN1897 N HSS steam | |
| 11255175 | NR | STUB DRILLS 81110 4,70 DIN1897 N HSS steam | |
| 11255179 | NR | STUB DRILLS 81110 4,80 DIN1897 N HSS steam | |
| 11255183 | NR | STUB DRILLS 81110 4,90 DIN1897 N HSS steam | |
| 11255187 | NR | STUB DRILLS 81110 5,00 DIN1897 N HSS steam | |
| 11255191 | NR | STUB DRILLS 81110 5,10 DIN1897 N HSS steam | |
| 11255195 | NR | STUB DRILLS 81110 5,20 DIN1897 N HSS steam | |
| 11255199 | NR | STUB DRILLS 81110 5,30 DIN1897 N HSS steam | |
| 11255203 | NR | STUB DRILLS 81110 5,40 DIN1897 N HSS steam | |
| 11255207 | NR | STUB DRILLS 81110 5,50 DIN1897 N HSS steam | |
| 11255211 | NR | STUB DRILLS 81110 5,60 DIN1897 N HSS steam | |
| 11255215 | NR | STUB DRILLS 81110 5,70 DIN1897 N HSS steam | |
| 11255219 | NR | STUB DRILLS 81110 5,80 DIN1897 N HSS steam | |
| 11255223 | NR | STUB DRILLS 81110 5,90 DIN1897 N HSS steam | |
| 11255227 | NR | STUB DRILLS 81110 6,00 DIN1897 N HSS steam | |
| 11255231 | NR | STUB DRILLS 81110 6,10 DIN1897 N HSS steam | |
| 11255235 | NR | STUB DRILLS 81110 6,20 DIN1897 N HSS steam | |
| 11255239 | NR | STUB DRILLS 81110 6,30 DIN1897 N HSS steam | |
| 11255243 | NR | STUB DRILLS 81110 6,40 DIN1897 N HSS steam | |
| 11255247 | NR | STUB DRILLS 81110 6,50 DIN1897 N HSS steam | |
| 11255251 | NR | STUB DRILLS 81110 6,60 DIN1897 N HSS steam | |
| 11255255 | NR | STUB DRILLS 81110 6,70 DIN1897 N HSS steam | |
| 11255263 | NR | STUB DRILLS 81110 6,80 DIN1897 N HSS steam | |
| 11255267 | NR | STUB DRILLS 81110 6,90 DIN1897 N HSS steam | |
| 11255271 | NR | STUB DRILLS 81110 7,00 DIN1897 N HSS steam | |
| 11255275 | NR | STUB DRILLS 81110 7,10 DIN1897 N HSS steam | |
| 11255279 | NR | STUB DRILLS 81110 7,20 DIN1897 N HSS steam | |
| 11255283 | NR | STUB DRILLS 81110 7,30 DIN1897 N HSS steam + | |
| 11255287 | NR | STUB DRILLS 81110 7,40 DIN1897 N HSS steam + | |
| 11255291 | NR | STUB DRILLS 81110 7,50 DIN1897 N HSS steam | |
| 11255295 | NR | STUB DRILLS 81110 7,60 DIN1897 N HSS steam + | |
| 11255299 | NR | STUB DRILLS 81110 7,70 DIN1897 N HSS steam | |
| 11255303 | NR | STUB DRILLS 81110 7,80 DIN1897 N HSS steam | |
| 11255307 | NR | STUB DRILLS 81110 7,90 DIN1897 N HSS steam | |
| 11255311 | NR | STUB DRILLS 81110 8,00 DIN1897 N HSS steam | |
| 11255315 | NR | STUB DRILLS 81110 8,10 DIN1897 N HSS steam | |
| 11255319 | NR | STUB DRILLS 81110 8,20 DIN1897 N HSS steam | |
| 11255323 | NR | STUB DRILLS 81110 8,30 DIN1897 N HSS steam | |
| 11255327 | NR | STUB DRILLS 81110 8,40 DIN1897 N HSS steam + | |
| 11255331 | NR | STUB DRILLS 81110 8,50 DIN1897 N HSS steam | |
| 11255335 | NR | STUB DRILLS 81110 8,60 DIN1897 N HSS steam | |
| 11255339 | NR | STUB DRILLS 81110 8,70 DIN1897 N HSS steam | |
| 11255343 | NR | STUB DRILLS 81110 8,80 DIN1897 N HSS steam | |
| 11255347 | NR | STUB DRILLS 81110 8,90 DIN1897 N HSS steam | |
| 11255351 | NR | STUB DRILLS 81110 9,00 DIN1897 N HSS steam | |
| 11255355 | NR | STUB DRILLS 81110 9,10 DIN1897 N HSS steam | |
| 11255359 | NR | STUB DRILLS 81110 9,20 DIN1897 N HSS steam | |
| 11255363 | NR | STUB DRILLS 81110 9,30 DIN1897 N HSS steam + | |
| 11255367 | NR | STUB DRILLS 81110 9,40 DIN1897 N HSS steam + | |
| 11255371 | NR | STUB DRILLS 81110 9,50 DIN1897 N HSS steam | |
| 11255375 | NR | STUB DRILLS 81110 9,60 DIN1897 N HSS steam | |
| 11255379 | NR | STUB DRILLS 81110 9,70 DIN1897 N HSS steam | |
| 11255383 | NR | STUB DRILLS 81110 9,80 DIN1897 N HSS steam + | |
| 11255387 | NR | STUB DRILLS 81110 9,90 DIN1897 N HSS steam + | |
| 11255391 | NR | STUB DRILLS 81110 10,00 DIN1897 N HSS steam | |
| 11255395 | NR | STUB DRILLS 81110 10,10 DIN1897 N HSS steam | |
| 11255399 | NR | STUB DRILLS 81110 10,20 DIN1897 N HSS steam | |
| 11255403 | NR | STUB DRILLS 81110 10,30 DIN1897 N HSS steam | |
| 11255407 | NR | STUB DRILLS 81110 10,30 DIN1897 N HSS steam | |
| 11255411 | NR | STUB DRILLS 81110 10,50 DIN1897 N HSS steam | |
| 11255415 | NR | STUB DRILLS 81110 10,60 DIN1897 N HSS steam + | |
| 11255419 | NR | STUB DRILLS 81110 10,70 DIN1897 N HSS steam | |
| 11255423 | NR | STUB DRILLS 81110 10,80 DIN1897 N HSS steam | |
| 11255427 | NR | STUB DRILLS 81110 10,90 DIN1897 N HSS steam | |
| 11255431 | NR | STUB DRILLS 81110 11,00 DIN1897 N HSS steam | |
| 11255435 | NR | STUB DRILLS 81110 11,10 DIN1897 N HSS steam + | |
| 11255439 | NR | STUB DRILLS 81110 11,20 DIN1897 N HSS steam | |
| 11255443 | NR | STUB DRILLS 81110 11,30 DIN1897 N HSS steam + | |
| 11255447 | NR | STUB DRILLS 81110 11,40 DIN1897 N HSS steam | |
| 11255451 | NR | STUB DRILLS 81110 11,50 DIN1897 N HSS steam | |
| 11255455 | NR | STUB DRILLS 81110 11,60 DIN1897 N HSS steam + | |
| 11255459 | NR | STUB DRILLS 81110 11,70 DIN1897 N HSS steam | |
| 11255463 | NR | STUB DRILLS 81110 11,80 DIN1897 N HSS steam | |
| 11255467 | NR | STUB DRILLS 81110 11,90 DIN1897 N HSS steam + | |
| 11255471 | NR | STUB DRILLS 81110 12,00 DIN1897 N HSS steam | |
| 11255475 | NR | STUB DRILLS 81110 12,10 DIN1897 N HSS steam | |
| 11255479 | NR | STUB DRILLS 81110 12,20 DIN1897 N HSS steam | |
| 11255483 | NR | STUB DRILLS 81110 12,30 DIN1897 N HSS steam | |
| 11255487 | NR | STUB DRILLS 81110 12,40 DIN1897 N HSS steam | |
| 11255491 | NR | STUB DRILLS 81110 12,50 DIN1897 N HSS steam | |
| 11255495 | NR | STUB DRILLS 81110 12,60 DIN1897 N HSS steam | |
| 11255499 | NR | STUB DRILLS 81110 12,70 DIN1897 N HSS steam | |
| 11255503 | NR | STUB DRILLS 81110 12,80 DIN1897 N HSS steam + | |
| 11255507 | NR | STUB DRILLS 81110 12,90 DIN1897 N HSS steam + | |
| 11255511 | NR | STUB DRILLS 81110 13,00 DIN1897 N HSS steam | |
| 11255515 | NR | STUB DRILLS 81110 13,50 DIN1897 N HSS steam | |
| 11255519 | NR | STUB DRILLS 81110 14,00 DIN1897 N HSS steam | |
| 11255523 | NR | STUB DRILLS 81110 14,50 DIN1897 N HSS steam | |
| 11255527 | NR | STUB DRILLS 81110 15,00 DIN1897 N HSS steam | |
| 11255531 | NR | STUB DRILLS 81110 15,50 DIN1897 N HSS steam | |
| 11255535 | NR | STUB DRILLS 81110 16,00 DIN1897 N HSS steam | |
| 11255539 | NR | STUB DRILLS 81110 16,50 DIN1897 N HSS steam | |
| 11255543 | NR | STUB DRILLS 81110 17,00 DIN1897 N HSS steam | |
| 11255547 | NR | STUB DRILLS 81110 17,50 DIN1897 N HSS steam | |
| 11255551 | NR | STUB DRILLS 81110 18,00 DIN1897 N HSS steam | |
| 11255555 | NR | STUB DRILLS 81110 18,50 DIN1897 N HSS steam | |
| 11255559 | NR | STUB DRILLS 81110 19,00 DIN1897 N HSS steam | |
| 11255563 | NR | STUB DRILLS 81110 19,50 DIN1897 N HSS steam | |
| 11255567 | NR | STUB DRILLS 81110 20,00 DIN1897 N HSS steam | |
| 11255575 | NR | STUB DRILLS 81110 21,00 DIN1897 N HSS steam | |
| 11255583 | NR | STUB DRILLS 81110 22,00 DIN1897 N HSS steam | |
| 11255587 | NR | STUB DRILLS 81110 23,00 DIN1897 N HSS steam | |
| 11255591 | NR | STUB DRILLS 81110 24,00 DIN1897 N HSS steam | |
| 11255595 | NR | STUB DRILLS 81110 25,00 DIN1897 N HSS steam | |
| 11255597 | NR | STUB DRILLS 81110 26,00 DIN1897 N HSS steam | |
| 11255607 | NR | STUB DRILLS 81110 27,00 DIN1897 N HSS steam | |
| 11255611 | NR | STUB DRILLS 81110 28,00 DIN1897 N HSS steam | |
| 11255615 | NR | STUB DRILLS 81110 29,00 DIN1897 N HSS steam | |
| 11255619 | NR | STUB DRILLS 81110 30,00 DIN1897 N HSS steam |
Request further information
