Cod. 11284

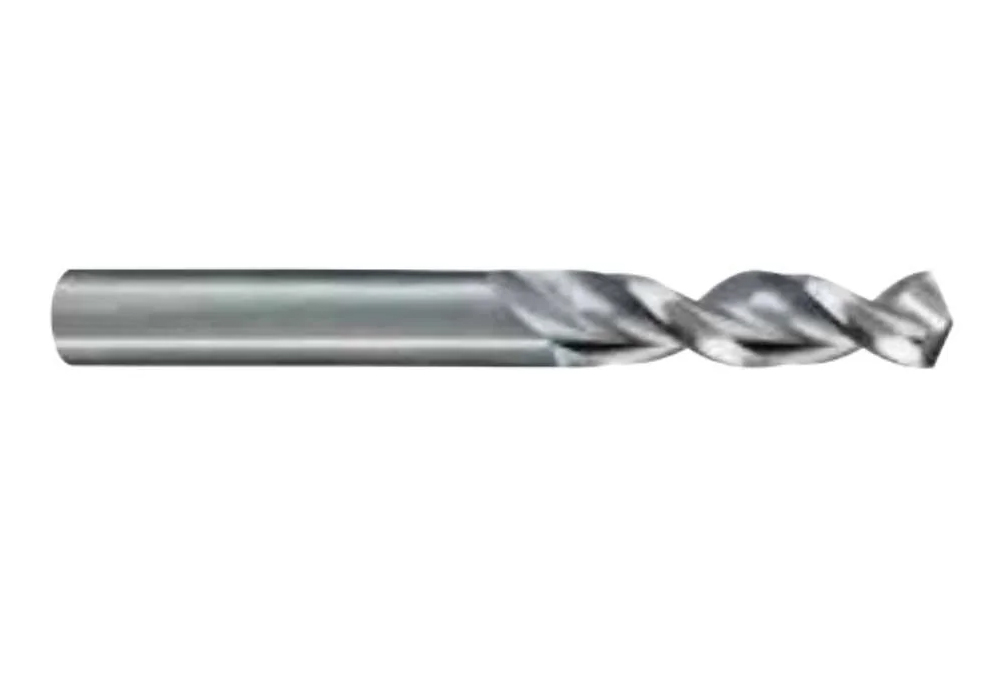

Stub drill HSS-Co DIN 1897, type FN

Stub drill 6131 Ilix DIN 1897, HSS with cobalt bright, type FN for steel with tensile stress up to 1300 N/mm², difficult to work materials. Item running out.

Code: 11284

Brand: Ilix

Category: Drills

Type: HSS/HSS-Co stub drills

Applications: click here

Helix orientation: left

Shank: cylindrical

Lubrification:

Lengths: Extra short

Tool Material: HSS-Co

Tolerance: h8

Coating: Bright

Vertex angle: Non spec.

Drill shape: DIN 1897

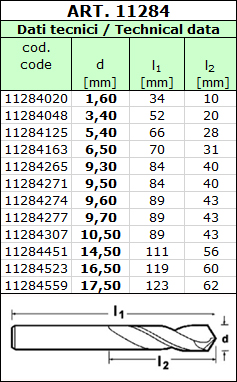

Order Print technical sheet

GB Code	UM	Description
11284020	NR	STUB DRILLS 6131 1,60 DIN1897 XT33 HSS-Co *
11284048	NR	STUB DRILLS 6131 3,40 DIN1897 XT33 HSS-Co *+
11284125	NR	STUB DRILLS 6131 5,40 DIN1897 XT33 HSS-Co *
11284163	NR	STUB DRILLS 6131 6,50 DIN1897 XT33 HSS-Co *+
11284265	NR	STUB DRILLS 6131 9,30 DIN1897 XT33 HSS-Co *
11284271	NR	STUB DRILLS 6131 9,50 DIN1897 XT33 HSS-Co *+
11284274	NR	STUB DRILLS 6131 9,60 DIN1897 XT33 HSS-Co *+
11284277	NR	STUB DRILLS 6131 9,70 DIN1897 XT33 HSS-Co *+
11284307	NR	STUB DRILLS 6131 10,50 DIN1897 XT33 HSS-Co *+
11284559	NR	STUB DRILLS 6131 17,50 DIN1897 XT33 HSS-Co *
