Cod. 11273
Stub drill HSS-Co DIN 1897, type XT33, bronzed

Stub drill 3383 Cleveland DIN 1897, HSS with cobalt bronzed, type XT33. Heavy-duty drill with high heat resistance for steel with tensile stress up to 1400 N/mm², stainless, heat and acid resistant steels, very hard bronze on automatics. Item running out.

Code: 11273

Brand: Cleveland

Category: Drills

Type: HSS/HSS-Co stub drills

Applications: click here

Helix orientation: left

Shank: cylindrical

Lubrification:

Lengths: Extra short

Tool Material: HSS-Co

Tolerance: h8

Coating: Bronzed

Vertex angle: 135°

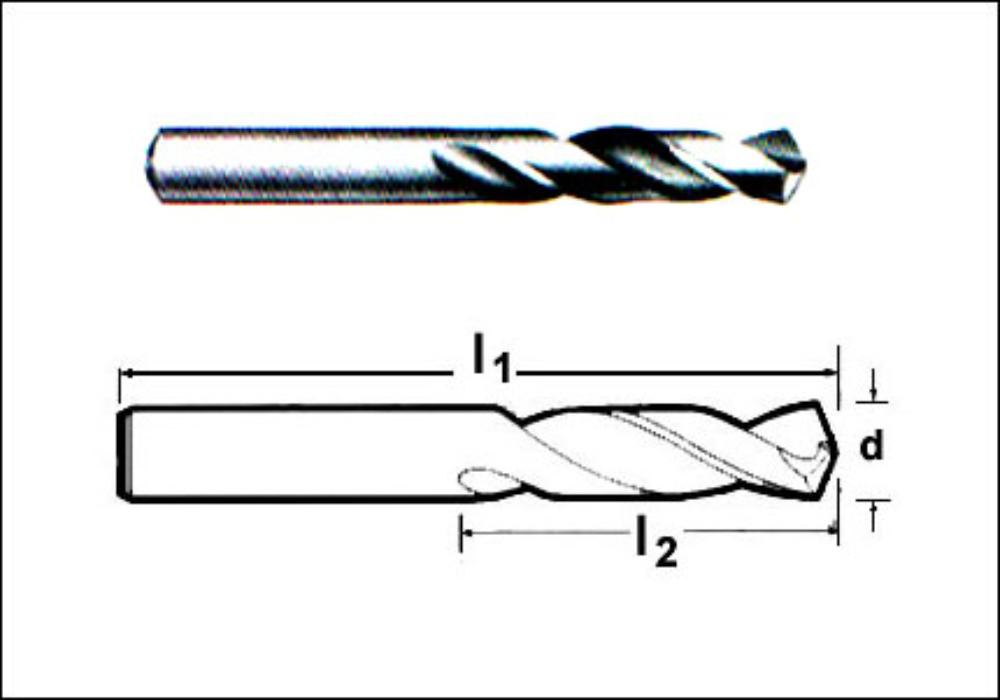

Drill shape: DIN 1897

Order Print technical sheet

Articles

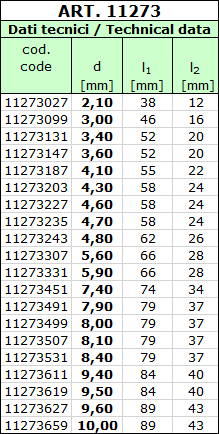

Data sheet

GB Code	UM	Description
11273027	NR	STUB DRILLS 3768 2,10 DIN1897 XT33 HSS-Co bronze *+
11273099	NR	STUB DRILLS 3768 3,00 DIN1897 XT33 HSS-Co bronze *+
11273131	NR	STUB DRILLS 3768 3,40 DIN1897 XT33 HSS-Co bronze *
11273147	NR	STUB DRILLS 3768 3,60 DIN1897 XT33 HSS-Co bronze *
11273187	NR	STUB DRILLS 3768 4,10 DIN1897 XT33 HSS-Co bronze *+
11273203	NR	STUB DRILLS 3768 4,30 DIN1897 XT33 HSS-Co bronze *+
11273227	NR	STUB DRILLS 3768 4,60 DIN1897 XT33 HSS-Co bronze *+
11273235	NR	STUB DRILLS 3768 4,70 DIN1897 XT33 HSS-Co bronze *
11273243	NR	STUB DRILLS 3768 4,80 DIN1897 XT33 HSS-Co bronze *
11273307	NR	STUB DRILLS 3768 5,60 DIN1897 XT33 HSS-Co bronze *
11273331	NR	STUB DRILLS 3768 5,90 DIN1897 XT33 HSS-Co bronze *
11273451	NR	STUB DRILLS 3768 7,40 DIN1897 XT33 HSS-Co bronze *
11273491	NR	STUB DRILLS 3768 7,90 DIN1897 XT33 HSS-Co bronze *
11273499	NR	STUB DRILLS 3768 8,00 DIN1897 XT33 HSS-Co bronze *+
11273507	NR	STUB DRILLS 3768 8,10 DIN1897 XT33 HSS-Co bronze *
11273531	NR	STUB DRILLS 3768 8,40 DIN1897 XT33 HSS-Co bronze *
11273611	NR	STUB DRILLS 3768 9,40 DIN1897 XT33 HSS-Co bronze *
11273619	NR	STUB DRILLS 3768 9,50 DIN1897 XT33 HSS-Co bronze *
11273627	NR	STUB DRILLS 3768 9,60 DIN1897 XT33 HSS-Co bronze *
11273659	NR	STUB DRILLS 3768 10,00 DIN1897 XT33 HSS-Co bronze *+
