Cod. 97813

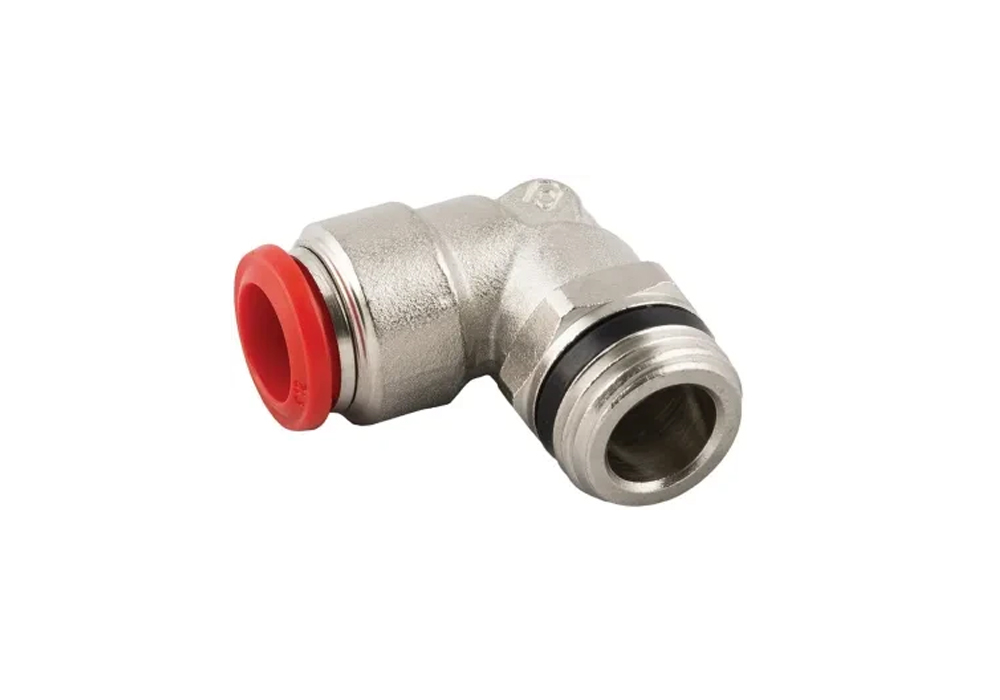

Raccordo a L orientabile maschio conico
Raccordo ad innesto automatico a L orientabile maschio conico per tubi in materiale plastico PA6, PA11, PA12, polietilene, poliuretano, PTFE, FEP, per aria compressa e vuoto. Corpo in ottone nichelato, spintore in resina acetalica, pinza di aggraffaggio in acciaio inox, guarnizioni in NBR. Pressione di esercizio -0,99 +20 bar, temperatura di esercizio -20 +80°C.
Codice: 97813
Marca: Aignep
Categoria: Componenti per aria compressa
Tipologia: Prese ed innesti rapidi
Cod. GB | UM | Descrizione | Nota |
---|---|---|---|
97813120 | NR | RACCORDI 50111 4-R1/8" INN.AUTOMATICO L | |
97813200 | NR | RACCORDI 50111 6-R1/8" INN.AUTOMATICO L | |
97813220 | NR | RACCORDI 50111 6-R1/4" INN.AUTOMATICO L | |
97813300 | NR | RACCORDI 50111 8-R1/8" INN.AUTOMATICO L | |
97813320 | NR | RACCORDI 50111 8-R1/4" INN.AUTOMATICO L | |
97813340 | NR | RACCORDI 50111 8-R3/8" INN.AUTOMATICO L | |
97813420 | NR | RACCORDI 50111 10-R1/4" INN.AUTOMATICO L | |
97813440 | NR | RACCORDI 50111 10-R3/8" INN.AUTOMATICO L | |
97813540 | NR | RACCORDI 50111 12-R3/8" INN.AUTOMATICO L | |
97813560 | NR | RACCORDI 50111 12-R1/2" INN.AUTOMATICO L |
