Cod. 28110

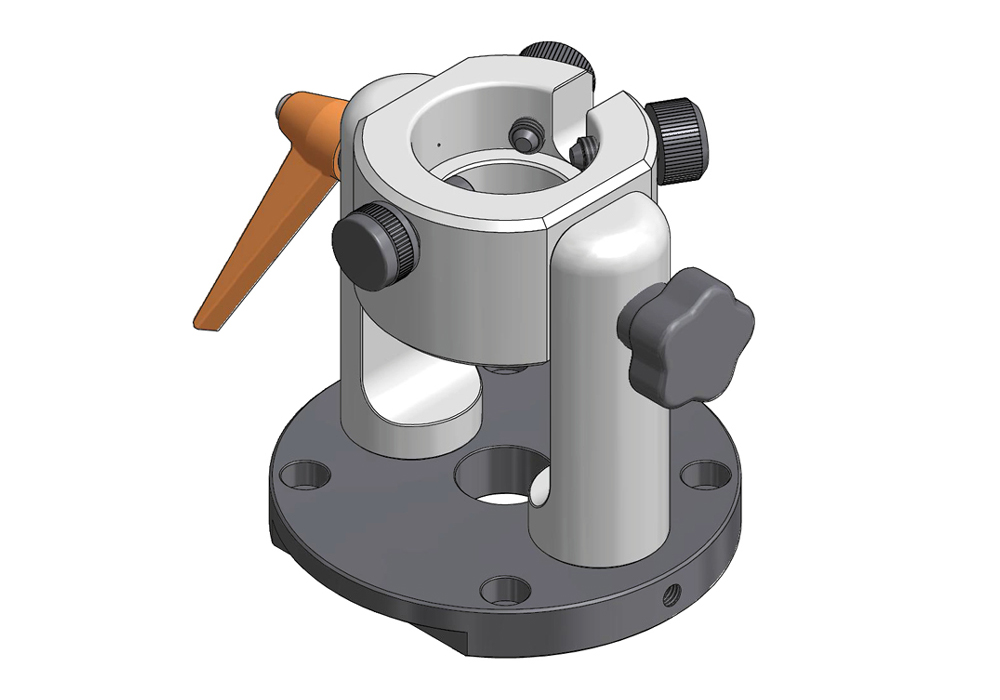

Universal tooling clamper TBK for chucks

Name: Gnutti Bortolo
Address: via Monsuello 34, Lumezzane, Lombardia, 25065, IT
Telephone: +390308926011

Universal tooling clamper TBK for chucks HSK, TC, BT, CAT, ISO, horizontally and vertically orientable, flange locking, no contact with tooltaper shank, not suitable for double contact connections.

Code: 28110

Brand: GB

Category: Various accessories

Type: Tooling clampers

Order Print technical sheet

GB Code	UM	Description	Note
28110030	NR	TOOLING CLAMPERS TBK30 CHUCKS UNIVERSAL
28110040	NR	TOOLING CLAMPERS TBK40 CHUCKS UNIVERSAL

data sheet Universal tooling clamper TBK for chucks

	GB Code	Description
	24074	ISO taper shank collet chuck, ER, standard nut
	24080	HSK taper shank collet chuck, ER, standard nut
	24090	TC taper shank collet chuck, ER, mini nut
	24094	TC taper shank collet chuck, ER, standard nut
	24097	BT taper shank collet chuck with bush, ER, standard
	24098	BT taper shank collet chuck, ER, standard nut
	24213	Fixed ISO taper milling machine spindle
	24216	ISO taper milling machine spindle, EME kind
	24245	Combi TC taper mill holders
	26856	Quick change tapping chuck with TC taper shank
