Cod. 24097
BT taper shank collet chuck with bush, ER, standard

Name: Gnutti Bortolo
Address: via Monsuello 34, Lumezzane, Lombardia, 25065, IT
Telephone: +390308926011

BT taper shank collet chuck Fahrion MAS 403/JIS 6339 form AD + B, with bush, for ER collets and standard ring nuts.

Code: 24097

Brand: GB

Category: Milling machines accessories

Type: Collet chucks

GB Code	UM	Description	Note

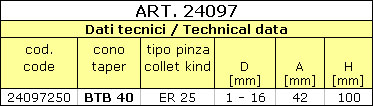

24097250	NR	COLLET CHUCKS BTB40.H100.ER25 25542 FP25-B40-A 100/105 with bush 25501 P25-ZHST FAHRION *

	GB Code	Description
	24117	Ring nut ER with standard thread
	24157	Spanner for ER standard ring nuts
	24182	Tool-holding collet ER
	24184	Sealed tool-holding collet ER RF for coolant
	24187	Collet ER set
	24421	Pull stud for BT taper shank, 45°
	24443	Pull stud OTT with internal threading
	28110	Universal tooling clamper TBK for chucks
	MUATT2.4.00	ER collet chucks
