Cod. 12345

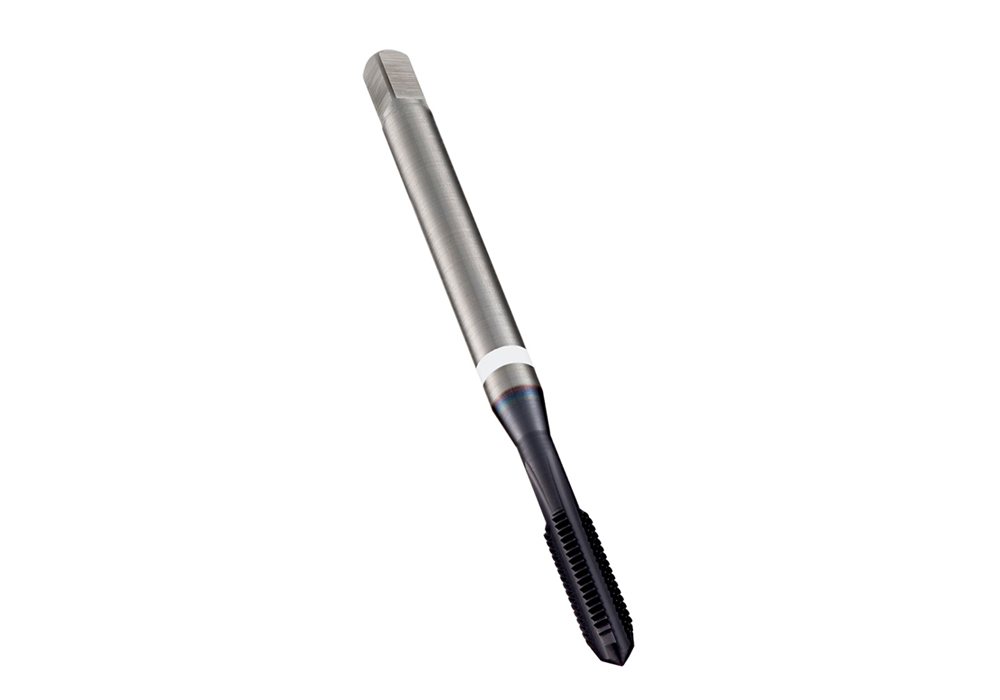

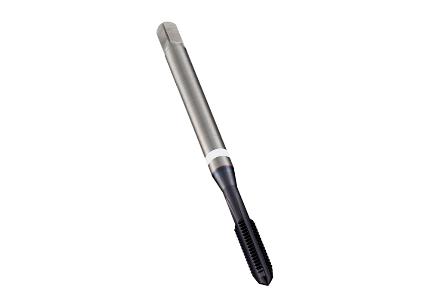

Tap M, chamfer C, straight, TiAlN, white ring, DIN 371
Machine tap Dormer E390 white ring high performance Shark-line, metric threading M, short chamfer C for blind and through holes, straight flutes, DIN 371 reinforced shank. Material HSS-E PM with TiAlN coating for machining short-chipping materials such as cast iron and non-ferrous metals.
Code: 12345
Brand: DORMER PRAMET
Category: Taps
Type: M machine taps

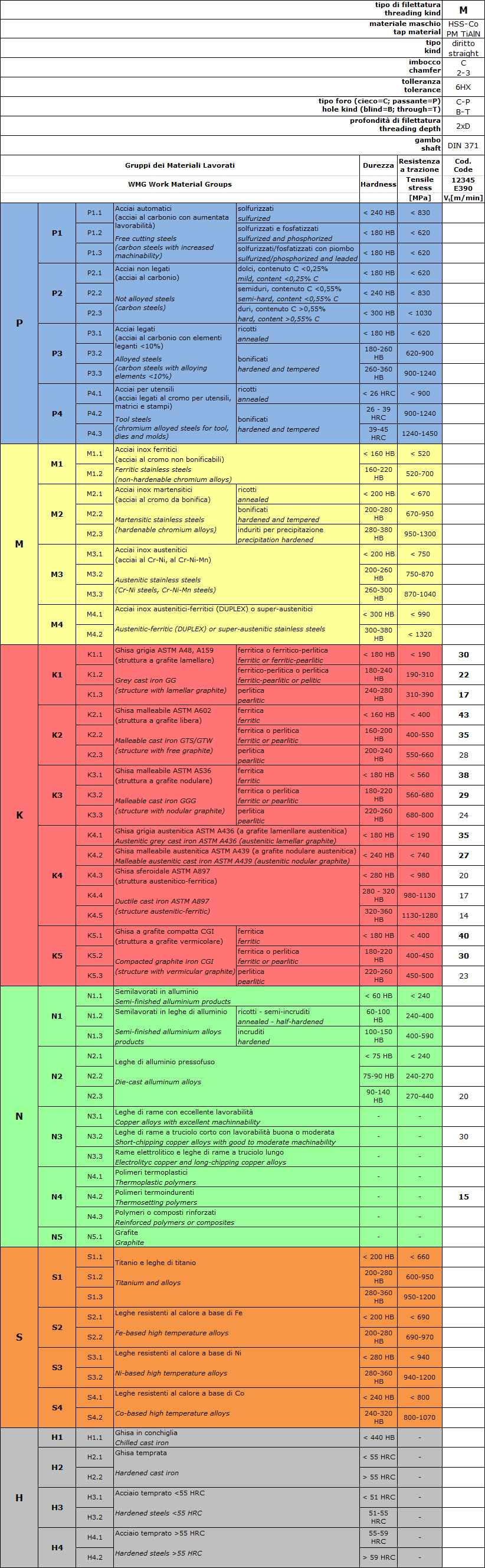

Applications: click here
Hole: Passer-by and blind cyl. hole
Shank: Not specified
Threading: M - ISO metric coarse thread
N° teeth in lead:
Tolerances: ISO6 HX
Coating: TiAlN
Material: HSS-Co Sint.

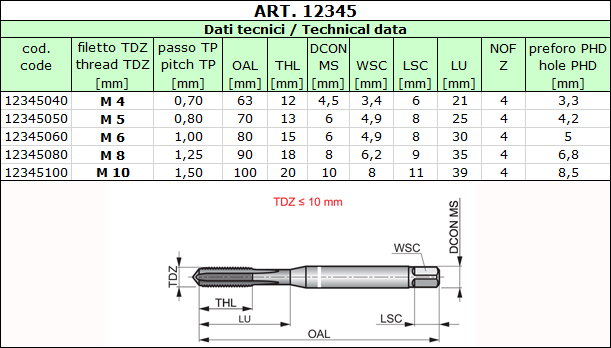

| GB Code | UM | Description | Note |
|---|---|---|---|
| 12345040 | NR | TAPS MASCHI E390 M 4,0X0,70 C straight white DIN371 HSS-CoPM TiAlN ** | |
| 12345050 | NR | TAPS MASCHI E390 M 5,0X0,80 C straight white DIN371 HSS-CoPM TiAlN ** | |
| 12345060 | NR | TAPS MASCHI E390 M 6,0X1,00 C straight white DIN371 HSS-CoPM TiAlN ** | |
| 12345080 | NR | TAPS MASCHI E390 M 8,0X1,25 C straight white DIN371 HSS-CoPM TiAlN ** | |
| 12345100 | NR | TAPS MASCHI E390 M 10,0X1,50 C straight white DIN371 HSS-CoPM TiAlN ** |
Request further information
