Cod. 12255

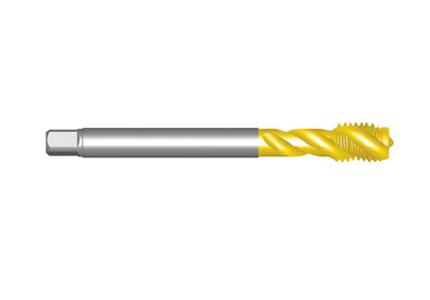

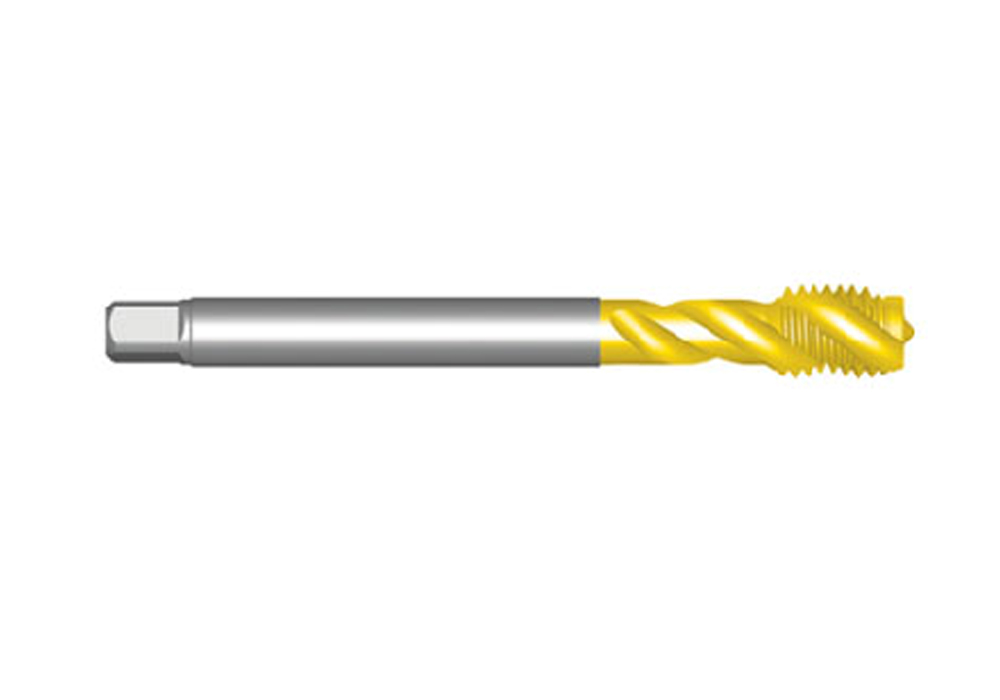

Tap M, chamfer C, helix 45°, TiN, DIN 376
Machine tap Dormer EX006TIN, metric threading M, short chamfer C for blind and through holes, high performance helix 45°, DIN 376 reduced shank. Material HSS-E PM with TiN coating which makes it suitable for a wide range of materials to be processed with higher cutting speeds and longer life.
Code: 12255
Brand: DORMER PRAMET
Category: Taps
Type: M machine taps

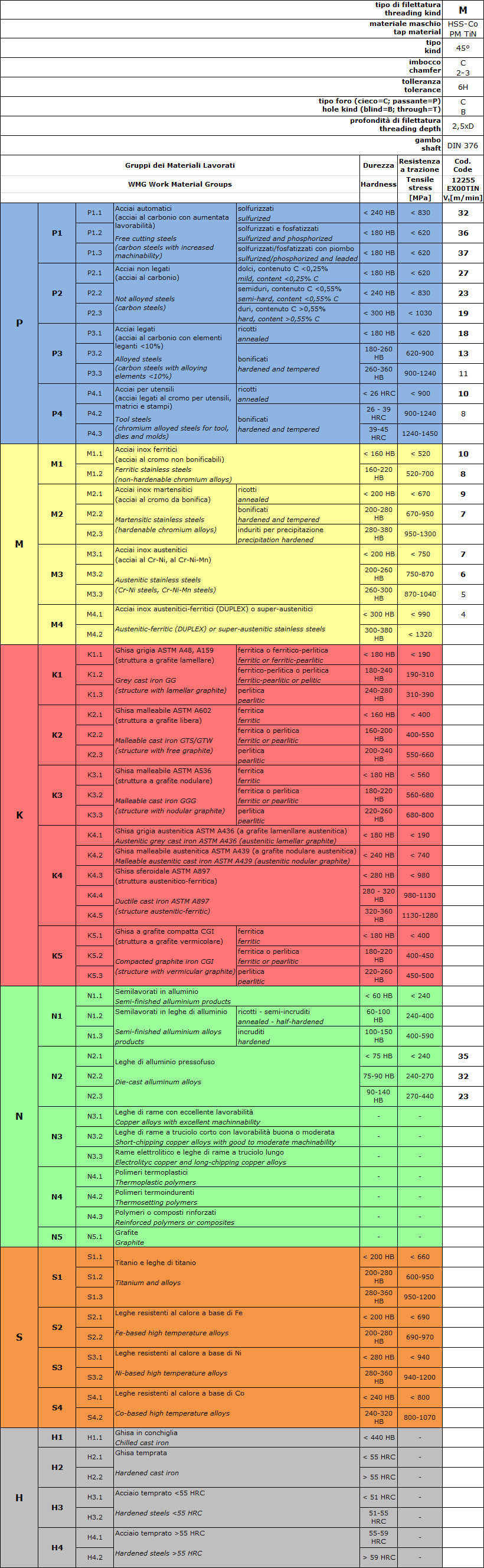

Applications: click here
Hole: Blind cylindrical hole
Shank: cylindrical
Threading: M - ISO metric coarse thread
N° teeth in lead:
Tolerances: ISO2 (6H)
Coating: TiN
Material: HSS-Co

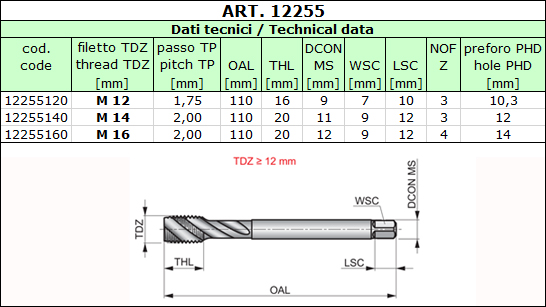

| GB Code | UM | Description | Note |
|---|---|---|---|
| 12255120 | NR | TAPS EX00TIN M 12,0X1,75 C 45° DIN376 HSS-CoPM TiN | |
| 12255140 | NR | TAPS EX00TIN M 14,0X2,00 C 45° DIN376 HSS-CoPM TiN | |
| 12255160 | NR | TAPS EX00TIN M 16,0X2,00 C 45° DIN376 HSS-CoPM TiN |
