Pilot pin with 2 diameters

Cod. 41227
Pilot pin with 2 diameters

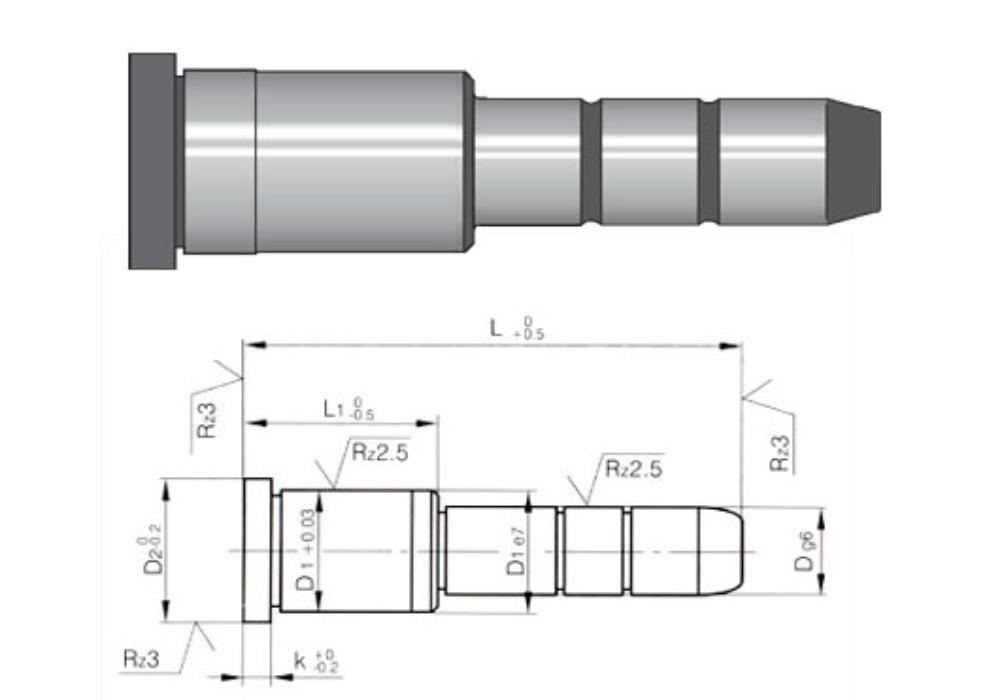

Pilot pin with 2 diameters for moulds.
Material steel 16 Cr Ni 4.
Finishing: casehardened, hardened and tempered, ground.
Hardness HRC 60 - 62.

Code: 41227
Brand: GB
Category: Standardized elements for dies
Type: Pilot pins

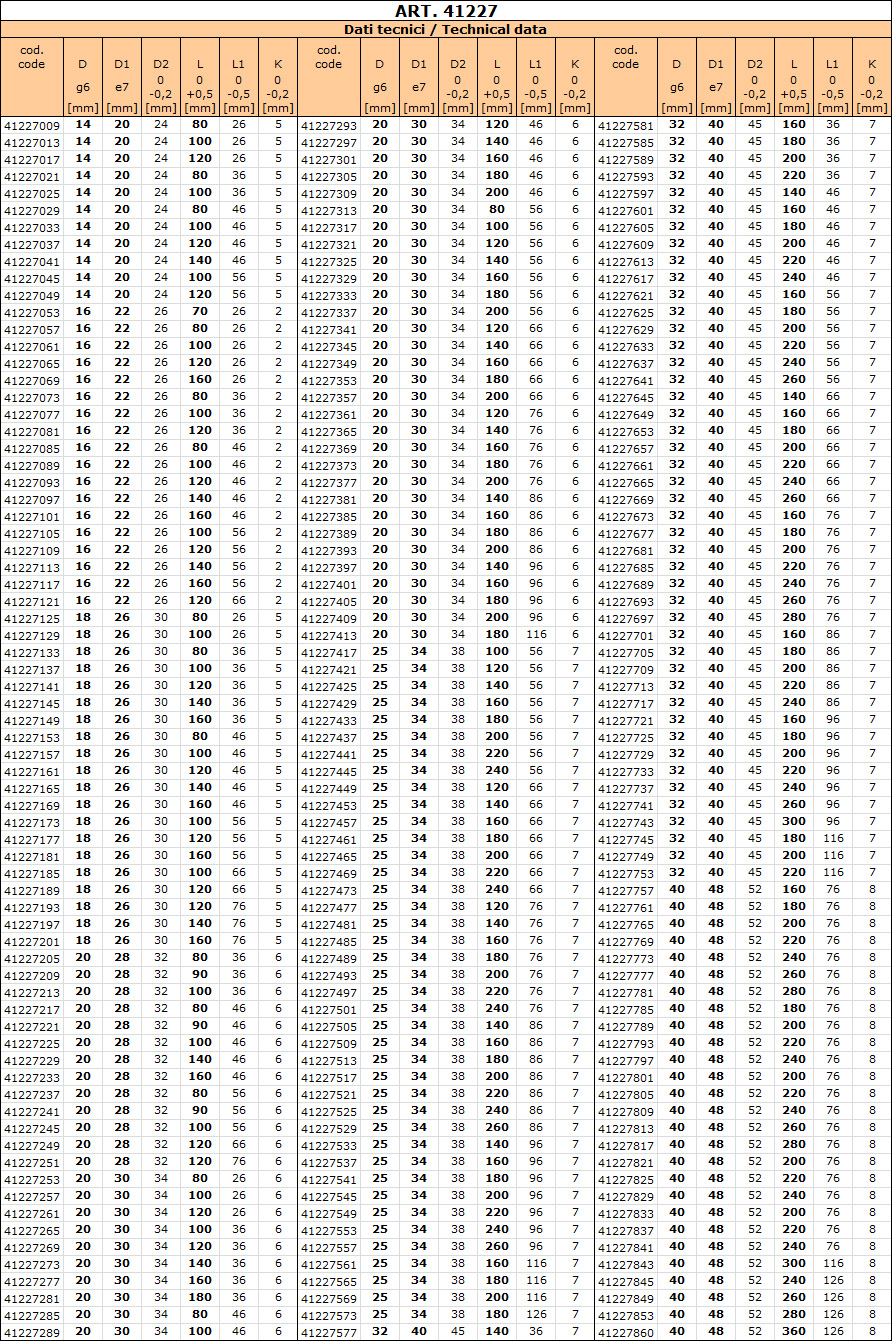

GB Code UM Description Note
41227009 NR PILOT PINS 2D 14/20X 26X 80
41227013 NR PILOT PINS 2D 14/20X 26X100
41227017 NR PILOT PINS 2D 14/20X 26X120
41227021 NR PILOT PINS 2D 14/20X 36X 80
41227025 NR PILOT PINS 2D 14/20X 36X100
41227029 NR PILOT PINS 2D 14/20X 46X 80
41227033 NR PILOT PINS 2D 14/20X 46X100
41227037 NR PILOT PINS 2D 14/20X 46X120
41227041 NR PILOT PINS 2D 14/20X 46X140 +
41227045 NR PILOT PINS 2D 14/20X 56X100
41227049 NR PILOT PINS 2D 14/20X 56X120
41227053 NR PILOT PINS 2D 16/22X 26X 70
41227057 NR PILOT PINS 2D 16/22X 26X 80
41227061 NR PILOT PINS 2D 16/22X 26X100
41227065 NR PILOT PINS 2D 16/22X 26X120
41227069 NR PILOT PINS 2D 16/22X 26X160
41227073 NR PILOT PINS 2D 16/22X 36X 80
41227077 NR PILOT PINS 2D 16/22X 36X100
41227081 NR PILOT PINS 2D 16/22X 36X120
41227085 NR PILOT PINS 2D 16/22X 46X 80
41227089 NR PILOT PINS 2D 16/22X 46X100
41227093 NR PILOT PINS 2D 16/22X 46X120
41227097 NR PILOT PINS 2D 16/22X 46X140
41227101 NR PILOT PINS 2D 16/22X 46X160
41227105 NR PILOT PINS 2D 16/22X 56X100
41227109 NR PILOT PINS 2D 16/22X 56X120
41227113 NR PILOT PINS 2D 16/22X 56X140
41227117 NR PILOT PINS 2D 16/22X 56X160
41227121 NR PILOT PINS 2D 16/22X 66X120
41227125 NR PILOT PINS 2D 18/26X 26X 80
41227129 NR PILOT PINS 2D 18/26X 26X100
41227133 NR PILOT PINS 2D 18/26X 36X 80
41227137 NR PILOT PINS 2D 18/26X 36X100
41227141 NR PILOT PINS 2D 18/26X 36X120
41227145 NR PILOT PINS 2D 18/26X 36X140
41227149 NR PILOT PINS 2D 18/26X 36X160
41227153 NR PILOT PINS 2D 18/26X 46X 80
41227157 NR PILOT PINS 2D 18/26X 46X100
41227161 NR PILOT PINS 2D 18/26X 46X120
41227165 NR PILOT PINS 2D 18/26X 46X140
41227169 NR PILOT PINS 2D 18/26X 46X160
41227173 NR PILOT PINS 2D 18/26X 56X100
41227177 NR PILOT PINS 2D 18/26X 56X120
41227181 NR PILOT PINS 2D 18/26X 56X160
41227185 NR PILOT PINS 2D 18/26X 66X100
41227189 NR PILOT PINS 2D 18/26X 66X120
41227193 NR PILOT PINS 2D 18/26X 76X120
41227197 NR PILOT PINS 2D 18/26X 76X140
41227201 NR PILOT PINS 2D 18/26X 76X160
41227205 NR PILOT PINS 2D 20/28X 36X 80
41227209 NR PILOT PINS 2D 20/28X 36X 90
41227213 NR PILOT PINS 2D 20/28X 36X100
41227217 NR PILOT PINS 2D 20/28X 46X 80
41227221 NR PILOT PINS 2D 20/28X 46X 90
41227225 NR PILOT PINS 2D 20/28X 46X100
41227229 NR PILOT PINS 2D 20/28X 46X140
41227233 NR PILOT PINS 2D 20/28X 46X160
41227237 NR PILOT PINS 2D 20/28X 56X 80
41227241 NR PILOT PINS 2D 20/28X 56X 90
41227245 NR PILOT PINS 2D 20/28X 56X100
41227249 NR PILOT PINS 2D 20/28X 66X120
41227251 NR PILOT PINS 2D 20/28X 76X120
41227253 NR PILOT PINS 2D 20/30X 26X 80
41227257 NR PILOT PINS 2D 20/30X 26X100
41227261 NR PILOT PINS 2D 20/30X 26X120
41227265 NR PILOT PINS 2D 20/30X 36X100
41227269 NR PILOT PINS 2D 20/30X 36X120
41227273 NR PILOT PINS 2D 20/30X 36X140
41227277 NR PILOT PINS 2D 20/30X 36X160
41227281 NR PILOT PINS 2D 20/30X 36X180
41227285 NR PILOT PINS 2D 20/30X 46X 80
41227289 NR PILOT PINS 2D 20/30X 46X100
41227293 NR PILOT PINS 2D 20/30X 46X120
41227297 NR PILOT PINS 2D 20/30X 46X140
41227301 NR PILOT PINS 2D 20/30X 46X160
41227305 NR PILOT PINS 2D 20/30X 46X180
41227309 NR PILOT PINS 2D 20/30X 46X200
41227313 NR PILOT PINS 2D 20/30X 56X 80
41227317 NR PILOT PINS 2D 20/30X 56X100
41227321 NR PILOT PINS 2D 20/30X 56X120
41227325 NR PILOT PINS 2D 20/30X 56X140
41227329 NR PILOT PINS 2D 20/30X 56X160
41227333 NR PILOT PINS 2D 20/30X 56X180
41227337 NR PILOT PINS 2D 20/30X 56X200
41227341 NR PILOT PINS 2D 20/30X 66X120
41227345 NR PILOT PINS 2D 20/30X 66X140
41227349 NR PILOT PINS 2D 20/30X 66X160
41227353 NR PILOT PINS 2D 20/30X 66X180
41227357 NR PILOT PINS 2D 20/30X 66X200
41227361 NR PILOT PINS 2D 20/30X 76X120
41227365 NR PILOT PINS 2D 20/30X 76X140
41227369 NR PILOT PINS 2D 20/30X 76X160
41227373 NR PILOT PINS 2D 20/30X 76X180
41227377 NR PILOT PINS 2D 20/30X 76X200
41227381 NR PILOT PINS 2D 20/30X 86X140
41227385 NR PILOT PINS 2D 20/30X 86X160
41227389 NR PILOT PINS 2D 20/30X 86X180
41227393 NR PILOT PINS 2D 20/30X 86X200
41227397 NR PILOT PINS 2D 20/30X 96X140
41227401 NR PILOT PINS 2D 20/30X 96X160
41227405 NR PILOT PINS 2D 20/30X 96X180
41227409 NR PILOT PINS 2D 20/30X 96X200
41227413 NR PILOT PINS 2D 20/30X116X180
41227417 NR PILOT PINS 2D 25/34X 56X100
41227421 NR PILOT PINS 2D 25/34X 56X120
41227425 NR PILOT PINS 2D 25/34X 56X140
41227429 NR PILOT PINS 2D 25/34X 56X160
41227433 NR PILOT PINS 2D 25/34X 56X180
41227437 NR PILOT PINS 2D 25/34X 56X200
41227441 NR PILOT PINS 2D 25/34X 56X220
41227445 NR PILOT PINS 2D 25/34X 56X240
41227449 NR PILOT PINS 2D 25/34X 66X120
41227453 NR PILOT PINS 2D 25/34X 66X140
41227457 NR PILOT PINS 2D 25/34X 66X160
41227461 NR PILOT PINS 2D 25/34X 66X180
41227465 NR PILOT PINS 2D 25/34X 66X200
41227469 NR PILOT PINS 2D 25/34X 66X220
41227473 NR PILOT PINS 2D 25/34X 66X240
41227477 NR PILOT PINS 2D 25/34X 76X120
41227481 NR PILOT PINS 2D 25/34X 76X140
41227485 NR PILOT PINS 2D 25/34X 76X160
41227489 NR PILOT PINS 2D 25/34X 76X180
41227493 NR PILOT PINS 2D 25/34X 76X200
41227497 NR PILOT PINS 2D 25/34X 76X220
41227501 NR PILOT PINS 2D 25/34X 76X240
41227505 NR PILOT PINS 2D 25/34X 86X140
41227509 NR PILOT PINS 2D 25/34X 86X160
41227513 NR PILOT PINS 2D 25/34X 86X180
41227517 NR PILOT PINS 2D 25/34X 86X200
41227521 NR PILOT PINS 2D 25/34X 86X220
41227525 NR PILOT PINS 2D 25/34X 86X240
41227529 NR PILOT PINS 2D 25/34X 86X260
41227533 NR PILOT PINS 2D 25/34X 96X140
41227537 NR PILOT PINS 2D 25/34X 96X160
41227541 NR PILOT PINS 2D 25/34X 96X180
41227545 NR PILOT PINS 2D 25/34X 96X200
41227549 NR PILOT PINS 2D 25/34X 96X220
41227553 NR PILOT PINS 2D 25/34X 96X240
41227557 NR PILOT PINS 2D 25/34X 96X260
41227561 NR PILOT PINS 2D 25/34X116X160
41227565 NR PILOT PINS 2D 25/34X116X180
41227569 NR PILOT PINS 2D 25/34X116X200
41227573 NR PILOT PINS 2D 25/34X126X180
41227577 NR PILOT PINS 2D 32/40X 36X140
41227581 NR PILOT PINS 2D 32/40X 36X160
41227585 NR PILOT PINS 2D 32/40X 36X180
41227589 NR PILOT PINS 2D 32/40X 36X200
41227593 NR PILOT PINS 2D 32/40X 36X220
41227597 NR PILOT PINS 2D 32/40X 46X140
41227601 NR PILOT PINS 2D 32/40X 46X160
41227605 NR PILOT PINS 2D 32/40X 46X180
41227609 NR PILOT PINS 2D 32/40X 46X200
41227613 NR PILOT PINS 2D 32/40X 46X220
41227617 NR PILOT PINS 2D 32/40X 46X240
41227621 NR PILOT PINS 2D 32/40X 56X160
41227625 NR PILOT PINS 2D 32/40X 56X180
41227629 NR PILOT PINS 2D 32/40X 56X200
41227633 NR PILOT PINS 2D 32/40X 56X220
41227637 NR PILOT PINS 2D 32/40X 56X240
41227641 NR PILOT PINS 2D 32/40X 56X260
41227645 NR PILOT PINS 2D 32/40X 66X140
41227649 NR PILOT PINS 2D 32/40X 66X160
41227653 NR PILOT PINS 2D 32/40X 66X180
41227657 NR PILOT PINS 2D 32/40X 66X200
41227661 NR PILOT PINS 2D 32/40X 66X220
41227665 NR PILOT PINS 2D 32/40X 66X240
41227669 NR PILOT PINS 2D 32/40X 66X260
41227673 NR PILOT PINS 2D 32/40X 76X160
41227677 NR PILOT PINS 2D 32/40X 76X180
41227681 NR PILOT PINS 2D 32/40X 76X200
41227685 NR PILOT PINS 2D 32/40X 76X220
41227689 NR PILOT PINS 2D 32/40X 76X240
41227693 NR PILOT PINS 2D 32/40X 76X260
41227697 NR PILOT PINS 2D 32/40X 76X280
41227701 NR PILOT PINS 2D 32/40X 86X160
41227705 NR PILOT PINS 2D 32/40X 86X180
41227709 NR PILOT PINS 2D 32/40X 86X200
41227713 NR PILOT PINS 2D 32/40X 86X220
41227717 NR PILOT PINS 2D 32/40X 86X240
41227721 NR PILOT PINS 2D 32/40X 96X160
41227725 NR PILOT PINS 2D 32/40X 96X180
41227729 NR PILOT PINS 2D 32/40X 96X200
41227733 NR PILOT PINS 2D 32/40X 96X220
41227737 NR PILOT PINS 2D 32/40X 96X240
41227741 NR PILOT PINS 2D 32/40X 96X260
41227743 NR PILOT PINS 2D 32/40X 96X300 SP*
41227745 NR PILOT PINS 2D 32/40X116X180
41227749 NR PILOT PINS 2D 32/40X116X200
41227753 NR PILOT PINS 2D 32/40X116X220
41227757 NR PILOT PINS 2D 40/48X 76X160
41227761 NR PILOT PINS 2D 40/48X 76X180
41227765 NR PILOT PINS 2D 40/48X 76X200
41227769 NR PILOT PINS 2D 40/48X 76X220
41227773 NR PILOT PINS 2D 40/48X 76X240
41227777 NR PILOT PINS 2D 40/48X 76X260
41227781 NR PILOT PINS 2D 40/48X 76X280
41227785 NR PILOT PINS 2D 40/48X 86X180
41227789 NR PILOT PINS 2D 40/48X 86X200
41227793 NR PILOT PINS 2D 40/48X 86X220
41227797 NR PILOT PINS 2D 40/48X 86X240
41227801 NR PILOT PINS 2D 40/48X 96X200
41227805 NR PILOT PINS 2D 40/48X 96X220
41227809 NR PILOT PINS 2D 40/48X 96X240
41227813 NR PILOT PINS 2D 40/48X 96X260
41227817 NR PILOT PINS 2D 40/48X 96X280
41227821 NR PILOT PINS 2D 40/48X106X200
41227825 NR PILOT PINS 2D 40/48X106X220
41227829 NR PILOT PINS 2D 40/48X106X240
41227833 NR PILOT PINS 2D 40/48X116X200
41227837 NR PILOT PINS 2D 40/48X116X220
41227841 NR PILOT PINS 2D 40/48X116X240
41227843 NR PILOT PINS 2D 40/48X116X300 SP *
41227845 NR PILOT PINS 2D 40/48X126X240
41227849 NR PILOT PINS 2D 40/48X126X260
41227853 NR PILOT PINS 2D 40/48X126X280
41227860 NR PILOT PINS 2D 40/48X126X360 SP *
