Cod. 41207

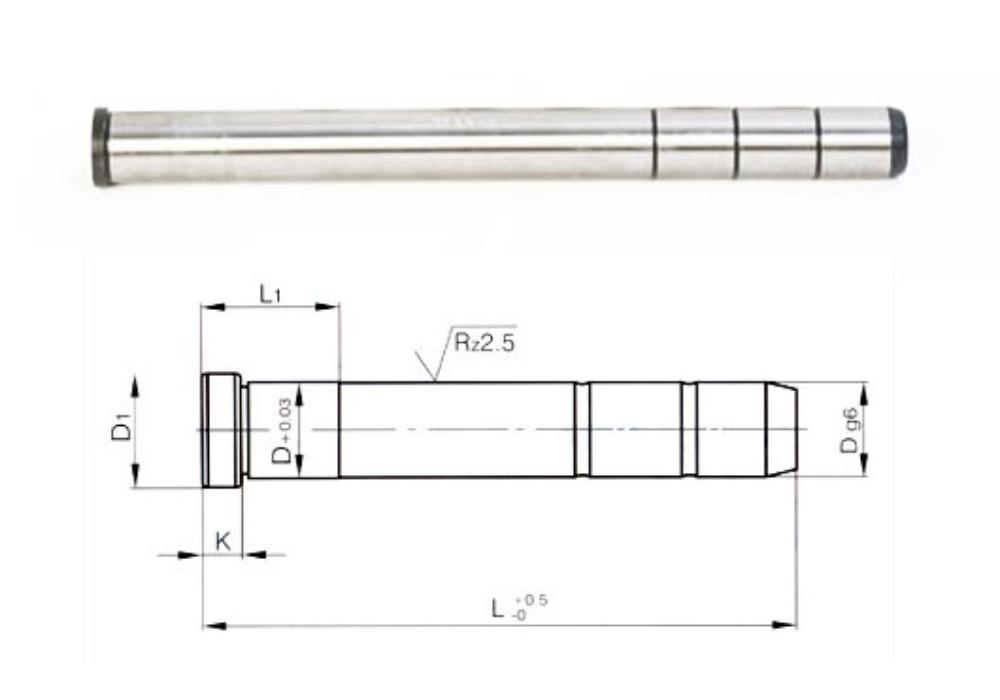

Pilot pin with 1 diameter
Pilot pin with 1 diameter for moulds.
Material steel 16 Cr Ni 4.
Finishing: casehardened, hardened and tempered, ground.
Hardness HRC 60 - 62.
Code: 41207
Brand: GB
Category: Standardized elements for dies
Type: Pilot pins

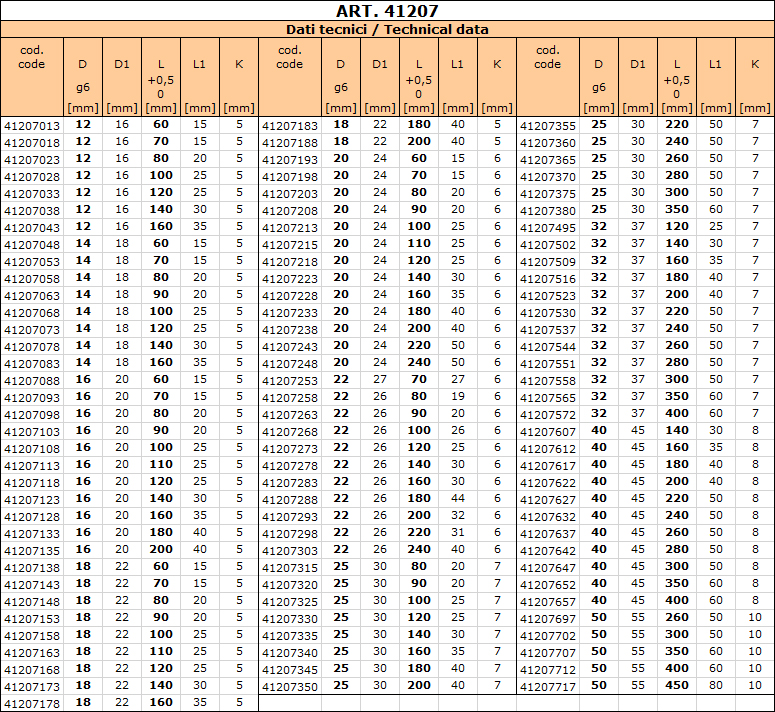

GB Code | UM | Description | Note |
---|---|---|---|
41207013 | NR | PILOT PINS 1D 12X 60 | |
41207018 | NR | PILOT PINS 1D 12X 70 | |
41207023 | NR | PILOT PINS 1D 12X 80 | |
41207028 | NR | PILOT PINS 1D 12X100 | |
41207033 | NR | PILOT PINS 1D 12X120 | |
41207038 | NR | PILOT PINS 1D 12X140 | |
41207043 | NR | PILOT PINS 1D 12X160 | |
41207048 | NR | PILOT PINS 1D 14X 60 | |
41207053 | NR | PILOT PINS 1D 14X 70 | |
41207058 | NR | PILOT PINS 1D 14X 80 | |
41207063 | NR | PILOT PINS 1D 14X 90 | |
41207068 | NR | PILOT PINS 1D 14X100 | |
41207073 | NR | PILOT PINS 1D 14X120 | |
41207078 | NR | PILOT PINS 1D 14X140 | |
41207083 | NR | PILOT PINS 1D 14X160 | |
41207088 | NR | PILOT PINS 1D 16X 60 | |
41207093 | NR | PILOT PINS 1D 16X 70 | |
41207098 | NR | PILOT PINS 1D 16X 80 | |
41207103 | NR | PILOT PINS 1D 16X 90 | |
41207108 | NR | PILOT PINS 1D 16X100 | |
41207113 | NR | PILOT PINS 1D 16X110 | |
41207118 | NR | PILOT PINS 1D 16X120 | |
41207123 | NR | PILOT PINS 1D 16X140 | |
41207128 | NR | PILOT PINS 1D 16X160 | |
41207133 | NR | PILOT PINS 1D 16X180 | |
41207135 | NR | PILOT PINS 1D 16X200 | |
41207138 | NR | PILOT PINS 1D 18X 60 | |
41207143 | NR | PILOT PINS 1D 18X 70 | |
41207148 | NR | PILOT PINS 1D 18X 80 | |
41207153 | NR | PILOT PINS 1D 18X 90 | |
41207158 | NR | PILOT PINS 1D 18X100 | |
41207163 | NR | PILOT PINS 1D 18X110 | |
41207168 | NR | PILOT PINS 1D 18X120 | |
41207173 | NR | PILOT PINS 1D 18X140 | |
41207178 | NR | PILOT PINS 1D 18X160 | |
41207183 | NR | PILOT PINS 1D 18X180 | |
41207188 | NR | PILOT PINS 1D 18X200 | |
41207193 | NR | PILOT PINS 1D 20X 60 | |
41207198 | NR | PILOT PINS 1D 20X 70 | |
41207203 | NR | PILOT PINS 1D 20X 80 | |
41207208 | NR | PILOT PINS 1D 20X 90 | |
41207213 | NR | PILOT PINS 1D 20X100 | |
41207215 | NR | PILOT PINS 1D 20X110 | |
41207218 | NR | PILOT PINS 1D 20X120 | |
41207223 | NR | PILOT PINS 1D 20X140 | |
41207228 | NR | PILOT PINS 1D 20X160 | |
41207233 | NR | PILOT PINS 1D 20X180 | |
41207238 | NR | PILOT PINS 1D 20X200 | |
41207243 | NR | PILOT PINS 1D 20X220 | |
41207248 | NR | PILOT PINS 1D 20X240 | |
41207253 | NR | PILOT PINS 1D 22X 70 SP | |
41207258 | NR | PILOT PINS 1D 22X 80 SP | |
41207263 | NR | PILOT PINS 1D 22X 90 SP | |
41207268 | NR | PILOT PINS 1D 22X100 SP | |
41207273 | NR | PILOT PINS 1D 22X120 SP | |
41207278 | NR | PILOT PINS 1D 22X140 SP | |
41207283 | NR | PILOT PINS 1D 22X160 SP | |
41207288 | NR | PILOT PINS 1D 22X180 SP | |
41207293 | NR | PILOT PINS 1D 22X200 SP | |
41207298 | NR | PILOT PINS 1D 22X220 SP | |
41207303 | NR | PILOT PINS 1D 22X240 SP * | |
41207315 | NR | PILOT PINS 1D 25X 80 | |
41207320 | NR | PILOT PINS 1D 25X 90 | |
41207325 | NR | PILOT PINS 1D 25X100 | |
41207330 | NR | PILOT PINS 1D 25X120 | |
41207335 | NR | PILOT PINS 1D 25X140 | |
41207340 | NR | PILOT PINS 1D 25X160 | |
41207345 | NR | PILOT PINS 1D 25X180 | |
41207350 | NR | PILOT PINS 1D 25X200 | |
41207355 | NR | PILOT PINS 1D 25X220 | |
41207360 | NR | PILOT PINS 1D 25X240 | |
41207365 | NR | PILOT PINS 1D 25X260 | |
41207370 | NR | PILOT PINS 1D 25X280 | |
41207375 | NR | PILOT PINS 1D 25X300 | |
41207380 | NR | PILOT PINS 1D 25X350 | |
41207495 | NR | PILOT PINS 1D 32X120 | |
41207502 | NR | PILOT PINS 1D 32X140 | |
41207509 | NR | PILOT PINS 1D 32X160 | |
41207516 | NR | PILOT PINS 1D 32X180 | |
41207523 | NR | PILOT PINS 1D 32X200 | |
41207530 | NR | PILOT PINS 1D 32X220 | |
41207537 | NR | PILOT PINS 1D 32X240 | |
41207544 | NR | PILOT PINS 1D 32X260 | |
41207551 | NR | PILOT PINS 1D 32X280 | |
41207558 | NR | PILOT PINS 1D 32X300 | |
41207565 | NR | PILOT PINS 1D 32X350 | |
41207572 | NR | PILOT PINS 1D 32X400 | |
41207607 | NR | PILOT PINS 1D 40X140 | |
41207612 | NR | PILOT PINS 1D 40X160 | |
41207617 | NR | PILOT PINS 1D 40X180 | |
41207622 | NR | PILOT PINS 1D 40X200 | |
41207627 | NR | PILOT PINS 1D 40X220 | |
41207632 | NR | PILOT PINS 1D 40X240 | |
41207637 | NR | PILOT PINS 1D 40X260 | |
41207642 | NR | PILOT PINS 1D 40X280 | |
41207647 | NR | PILOT PINS 1D 40X300 | |
41207652 | NR | PILOT PINS 1D 40X350 | |
41207657 | NR | PILOT PINS 1D 40X400 | |
41207697 | NR | PILOT PINS 1D 50X260 | |
41207702 | NR | PILOT PINS 1D 50X300 | |
41207707 | NR | PILOT PINS 1D 50X350 | |
41207712 | NR | PILOT PINS 1D 50X400 | |
41207717 | NR | PILOT PINS 1D 50X450 |
