Cod. 18873

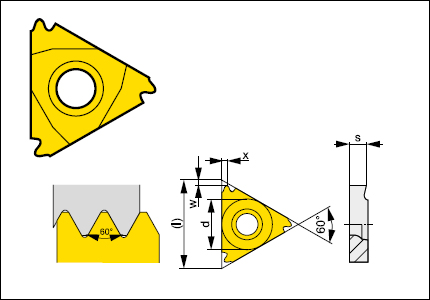

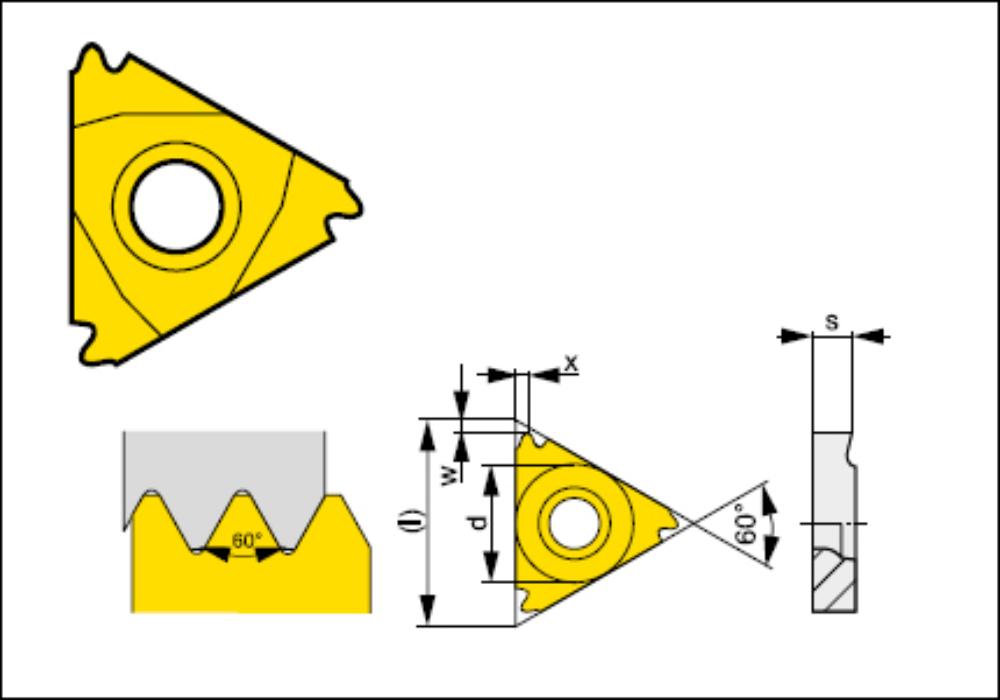

Universal external threading insert TN metric 60°
Universal insert TN for metric ISO threading 60°, right external execution, partial profile. Coating PVD T8030, highly versatile, medium cutting speeds; main application class ISO P35, M25, K30, secondary N25, S20, H20. Article to exhaustion.
Code: 18873
Brand: IMPERO PRAMET
Category: Turning inserts
Type: Threading inserts
Applications: click here
Insert working mode:
Insert shape: TN
Tool type: Insert-handlers and Inserts
Tool Material: HM
Coating: PVD
Blockage system: S
Orientation: R
Request further information
