Cod. 12480

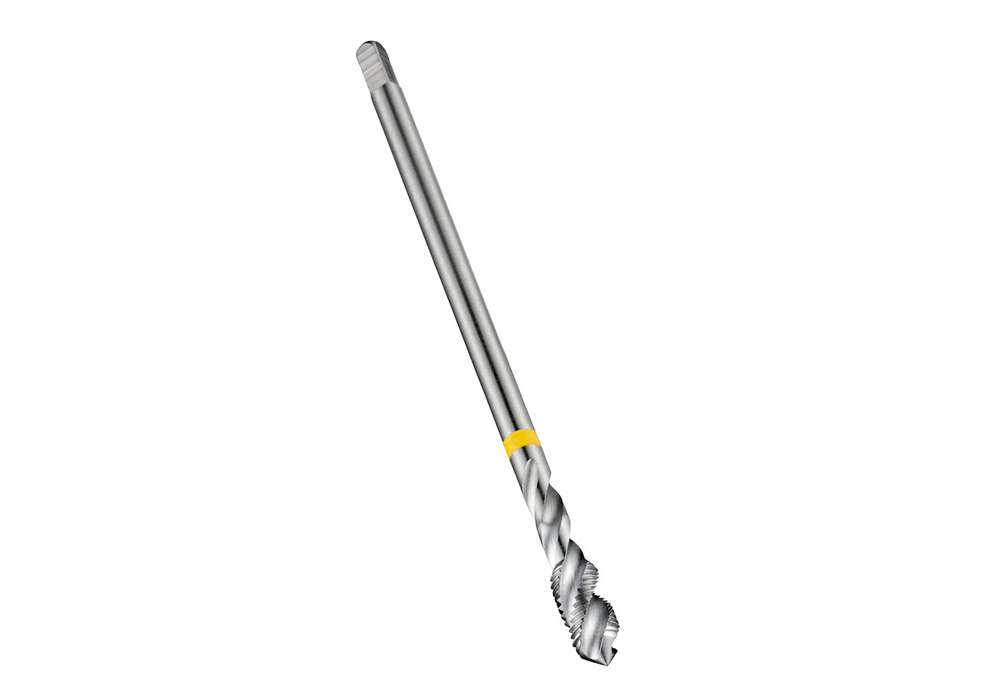

Tap MF, chamfer C, helix 40°, yellow ring, DIN 374

Machine tap Dormer E300 yellow ring high performance Shark-line, metric threading M, short chamfer C for blind holes, helix 40°, DIN 374 reduced shank. Material HSS-E PM with chrome coating for low carbon steels, alloy steels and non-ferrous metals, especially short-chipping copper and brass.

Code: 12480

Brand: DORMER PRAMET

Category: Taps

Type: MF machine taps

Applications: click here

Hole: Blind cylindrical hole

Shank: cylindrical

Threading: MF - ISO metric fine thread

N° teeth in lead:

Tolerances: ISO2 (6H)

Coating: Cr

Material: HSS-Co Sint.

Order Print technical sheet

Articles
Data sheet

GB Code	UM	Description
12480031	NR	TAPS E300 MF 4,0X0,50 C 40° yellow DIN374 HSS-CoPM+Cr
12480057	NR	TAPS E300 MF 5,0X0,50 C 40° yellow DIN374 HSS-CoPM+Cr
12480083	NR	TAPS E300 MF 6,0X0,75 C 40° yellow DIN374 HSS-CoPM+Cr
12480128	NR	TAPS E300 MF 8,0X0,75 C 40° yellow DIN374 HSS-CoPM+Cr
12480138	NR	TAPS E300 MF 8,0X1,00 C 40° yellow DIN374 HSS-CoPM+Cr
12480167	NR	TAPS E300 MF 10,0X0,75 C 40° yellow DIN374 HSS-CoPM+Cr
12480177	NR	TAPS E300 MF 10,0X1,00 C 40° yellow DIN374 HSS-CoPM+Cr
12480187	NR	TAPS E300 MF 10,0X1,25 C 40° yellow DIN374 HSS-CoPM+Cr
12480262	NR	TAPS E300 MF 12,0X1,00 C 40° yellow DIN374 HSS-CoPM+Cr
12480265	NR	TAPS E300 MF 12,0X1,25 C 40° yellow DIN374 HSS-CoPM+Cr
12480291	NR	TAPS E300 MF 12,0X1,50 C 40° yellow DIN374 HSS-CoPM+Cr
12480317	NR	TAPS E300 MF 14,0X1,00 C 40° yellow DIN374 HSS-CoPM+Cr
12480330	NR	TAPS E300 MF 14,0X1,25 C 40° yellow DIN374 HSS-CoPM+Cr
12480343	NR	TAPS E300 MF 14,0X1,50 C 40° yellow DIN374 HSS-CoPM+Cr
12480421	NR	TAPS E300 MF 16,0X1,00 C 40° yellow DIN374 HSS-CoPM+Cr
12480430	NR	TAPS E300 MF 16,0X1,50 C 40° yellow DIN374 HSS-CoPM+Cr
