Valves tap F19, chamfer C, taper shank

Cod. 12820
Valves tap F19, chamfer C, taper shank

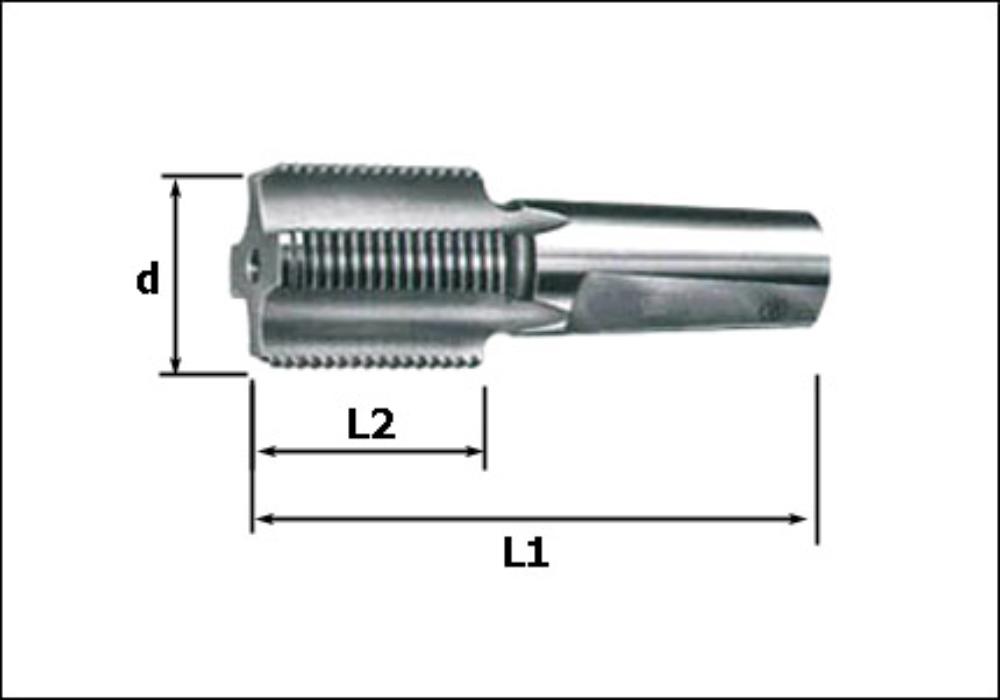

Valves tap with F19 threading, short chamfer C for blind holes, straight flutes, taper shank. Material HSS for general use. Item running out.

Code: 12820
Brand: GB
Category: Taps
Type: Valves taps
Applications: click here
Hole: Blind cylindrical hole
Shank: Morse Shank
Threading: F19 - 19 Thread
N° teeth in lead:
Tolerances: Non specificato
Coating: None
Material: HSS

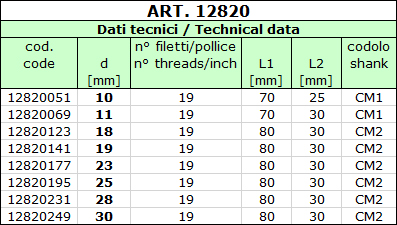

GB Code UM Description Note
12820051 NR TAPS B 10X19 C straight CM1 *
12820069 NR TAPS B 11X19 C straight CM1 *
12820123 NR TAPS B 18X19 C straight CM2 a *+
12820141 NR TAPS B 19X19 C straight CM2 a *+
12820177 NR TAPS B 23X19 C straight CM2 a *+
12820195 NR TAPS B 25X19 C straight CM2 *
12820231 NR TAPS B 28X19 C straight CM2 a *+
12820249 NR TAPS B 30X19 C straight CM2 a *+
data sheet Valves tap F19, chamfer C, taper shank
