Cod. 12532

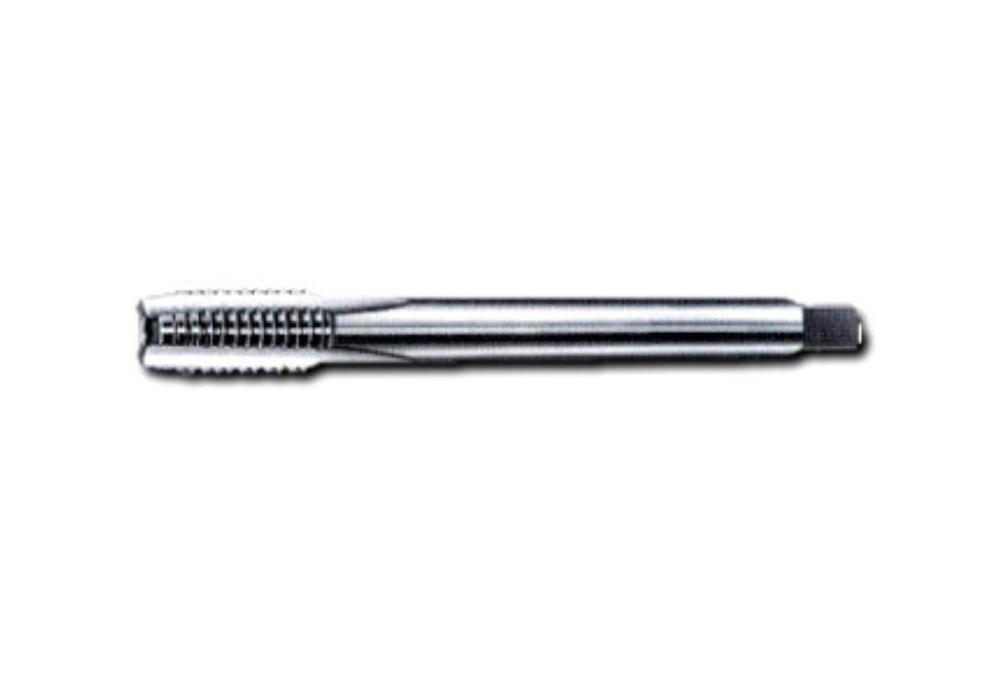

Tap BSW, chamfer C, straight, DIN 374

Machine tap TD, Withworth threading BSW, short chamfer C for blind holes, straight flutes, DIN 374 reduced shank. Material HSS-E with bright finish for general use.

Code: 12532

Brand: GB

Category: Taps

Type: BSW machine taps

Applications: click here

Hole: Blind cylindrical hole

Shank: cylindrical

Threading: BSW - Whitworth thread

N° teeth in lead:

Tolerances: Non specificato

Coating: None

Material: HSS-Co

Order Print technical sheet

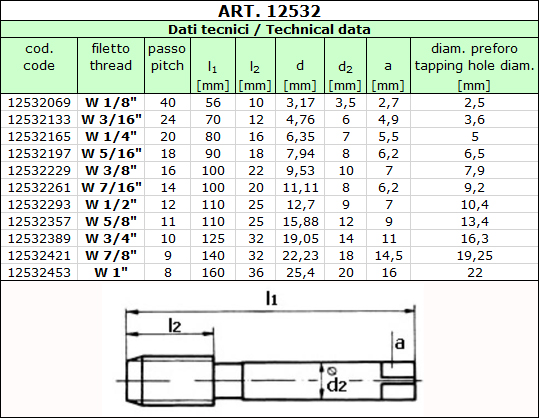

GB Code	UM	Description
12532069	NR	TAPS 12532 W 1/8" C straight DIN374 HSS-Co +
12532133	NR	TAPS 12532 W 3/16" C straight DIN374 HSS-Co
12532165	NR	TAPS 12532 W 1/4" C straight DIN374 HSS-Co
12532197	NR	TAPS 12532 W 5/16" C straight DIN374 HSS-Co
12532229	NR	TAPS 12532 W 3/8" C straight DIN374 HSS-Co
12532261	NR	TAPS 12532 W 7/16" C straight DIN374 HSS-Co
12532293	NR	TAPS 12532 W 1/2" C straight DIN374 HSS-Co
12532357	NR	TAPS 12532 W 5/8" C straight DIN374 HSS-Co
12532389	NR	TAPS 12532 W 3/4" C straight DIN374 HSS-Co +
12532421	NR	TAPS 12532 W 7/8" C straight DIN374 HSS-Co +
12532453	NR	TAPS 12532 W 1" C straight DIN374 HSS-Co
