Cod. 11760

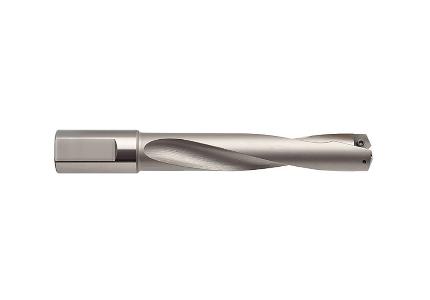

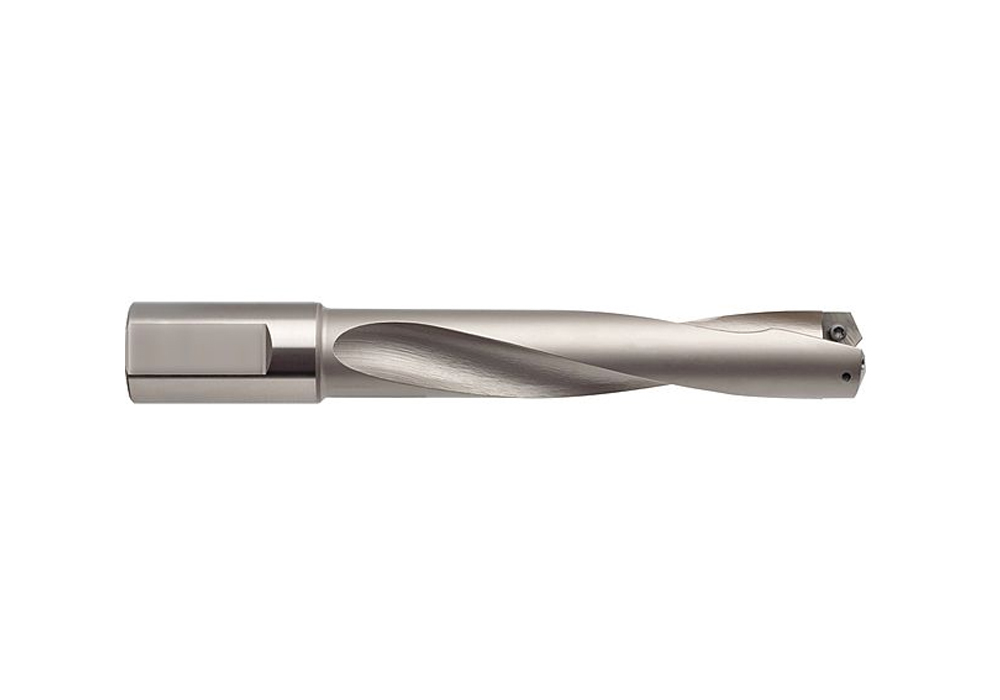

Insert drill with cylindrical shank
Twist drill 86622 Hartner with interchangeable inserts and internal lubrication holes, drilling depth up to 5 times the diameter. Wide grooves guarantee optimal chip evacuation, supplied with insert tightening screws. The drill can be used on solid, it is not suitable for finishing cast holes or for enlarging pre-existing holes.
Code: 11760
Brand: Hartner
Category: Drills
Type: Insert drills
Applications: click here
Helix orientation: left
Shank: cylindrical
Lubrification:
Lengths: Not specified
Tool Material: HSS
Tolerance: Non specificato
Coating: None
Vertex angle: Non spec.
Drill shape: none

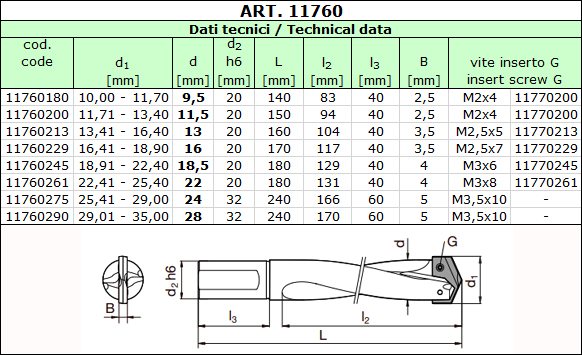

| GB Code | UM | Description | Note |
|---|---|---|---|
| 11760180 | NR | INSERT DRILLS 86622 9,5 MULTIPLEX holes 9,71- 11,70 | |
| 11760200 | NR | INSERT DRILLS 86622 11,5 MULTIPLEX holes 11,71- 13,40 | |
| 11760213 | NR | INSERT DRILLS 86622 13,0 MULTIPLEX holes 13,41- 16,40 | |
| 11760229 | NR | INSERT DRILLS 86622 16,0 MULTIPLEX holes 16,41- 18,90 | |
| 11760245 | NR | INSERT DRILLS 86622 18,5 MULTIPLEX holes 18,91- 22,40 | |
| 11760261 | NR | INSERT DRILLS 86622 22,0 MULTIPLEX holes 22,41- 25,40 | |
| 11760275 | NR | INSERT DRILLS 86622 24,0 MULTIPLEX holes 25,41- 29,00 | |
| 11760290 | NR | INSERT DRILLS 86622 28,0 MULTIPLEX holes 29,01- 35,00 |
Request further information
