Insert SNMA T5305 for turning

Cod. 18340
Insert SNMA T5305 for turning

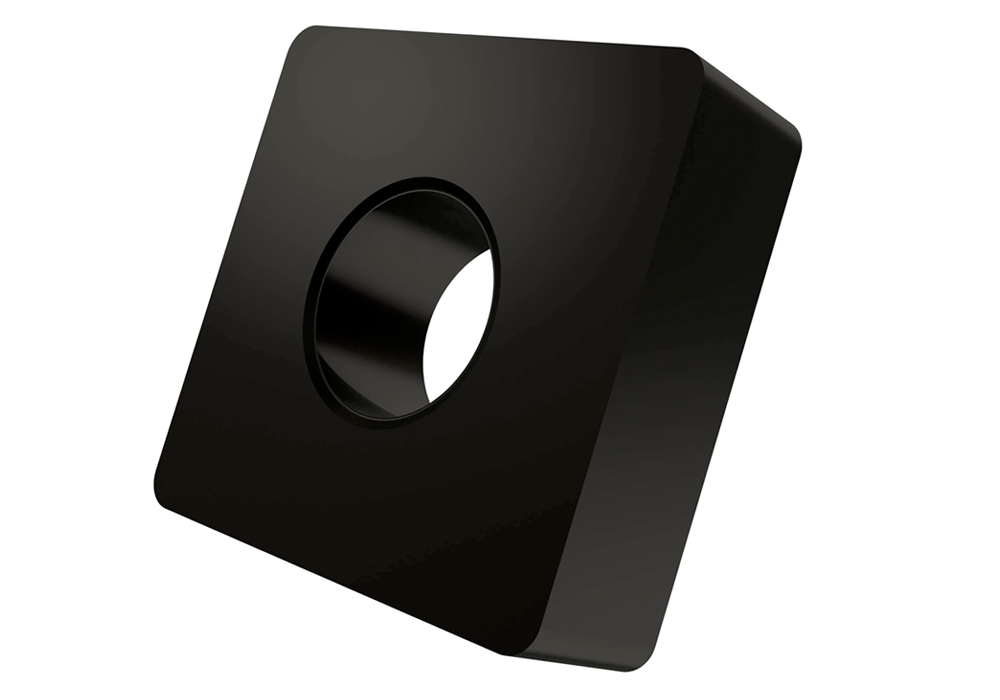

Insert DORMER PRAMET SNMA T5305 negative with hole for turning. Zero rake negative geometry with rounded cutting edge, suitable for finishing operations up to semi-roughing continuous to slightly interrupted cutting of cast irons and potentially hard materials, which produce short chips. CVD grade T5305 with very high resistance to chemical wear and abrasion, suitable for finishing applications with high cutting speeds also for productive processing of treated and hardened materials. Main application ISO class K01-K15, secondary H05-H15.

Code: 18340
Brand: DORMER PRAMET
Category: Turning inserts
Type: Turning inserts
Applications: click here
Insert working mode:
Insert shape: S
Tool type: Insert-handlers and Inserts
Tool Material: HM
Coating: CVD
Blockage system: P+D
Orientation: -
GB Code UM Description Note
18340480 NR INSERTS SNMA 120408 T5305 K10 (H15) **

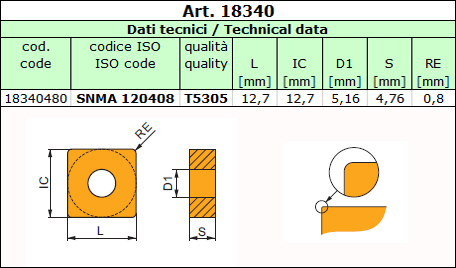

data sheet Insert SNMA T5305 for turning

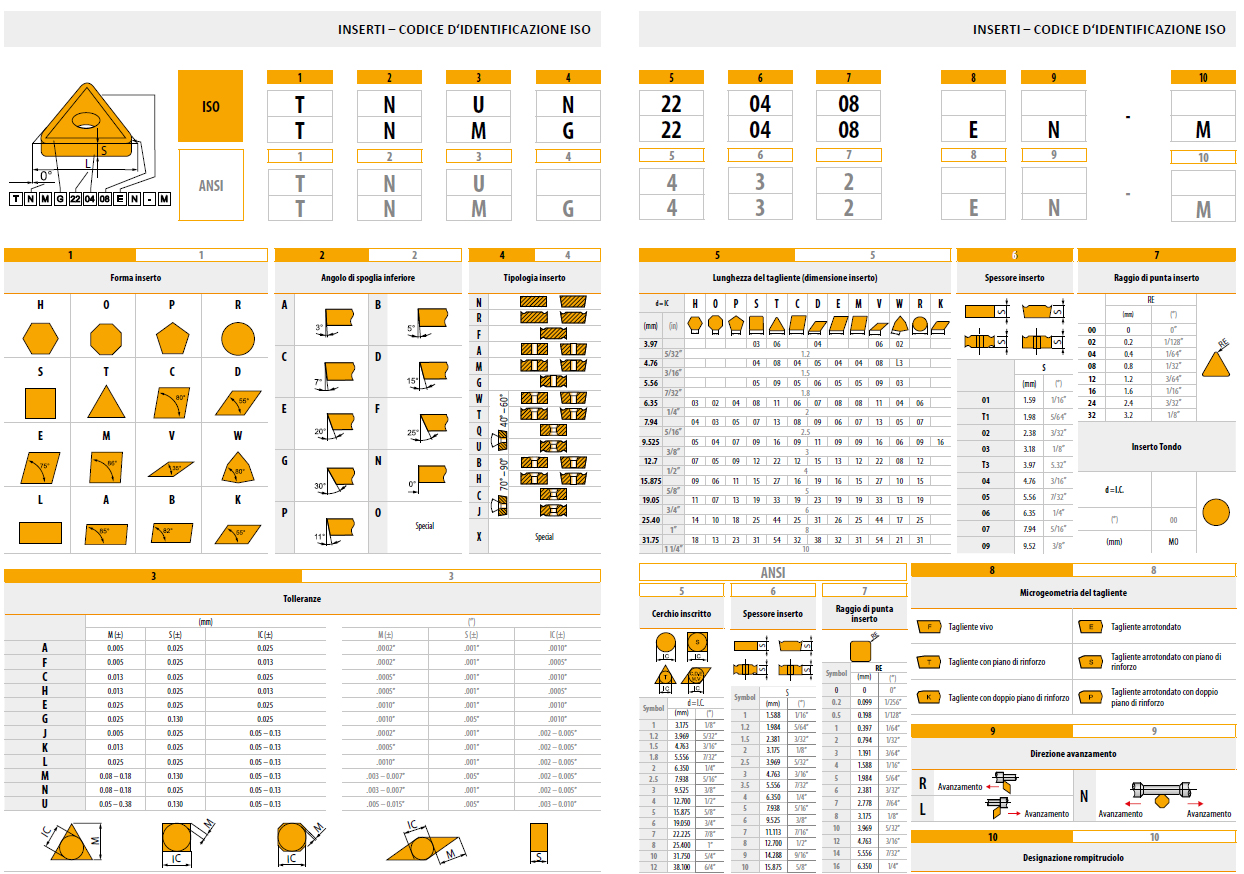

norms Insert SNMA T5305 for turning

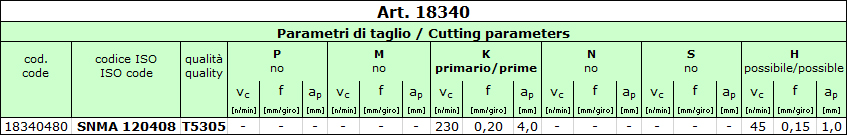

cutting parameters Inserto SNMA T5305 per tornitura
