Insert LFMX SN-M2 T8330

Cod. 18776
Insert LFMX SN-M2 T8330

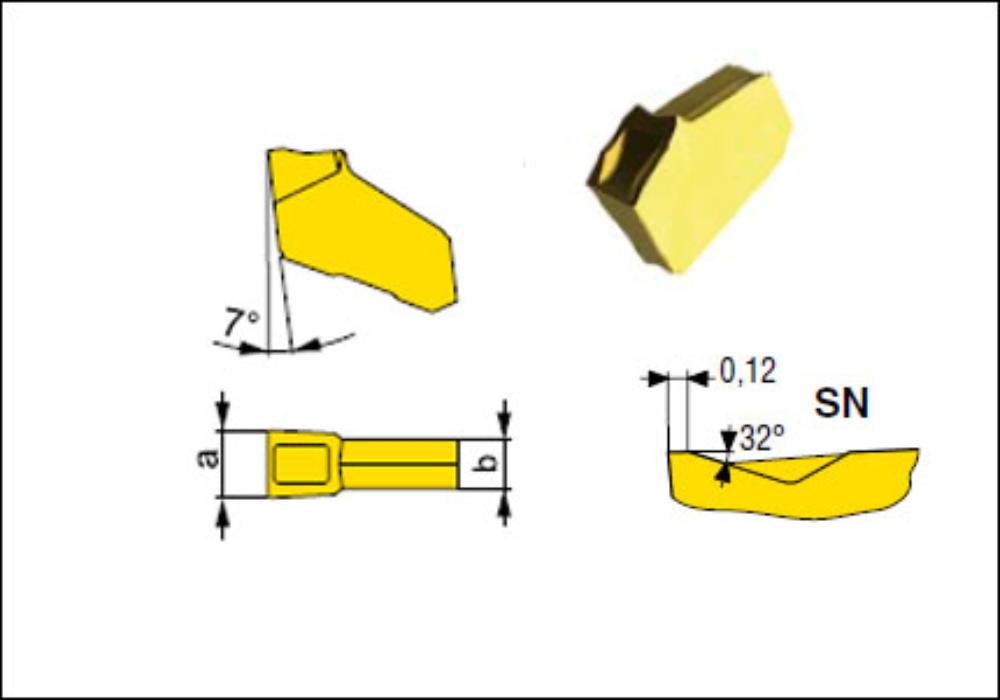

Insert LFMX SN-M2 for cutting off. Universal geometry for sligthly interrupted cut on machining material groups P and M, secondary application K and S, supplementary application N and H. Coating PVD T8330, main application class ISO P30, M25, K30, secondary S25, possible N25, H20.

Code: 18776
Brand: IMPERO PRAMET
Category: Turning inserts
Type: Cutting-off and grooving inserts
Applications: click here
Insert working mode:
Insert shape: L
Tool type: Insert-handlers and Inserts
Tool Material: HM
Coating: PVD
Blockage system:
Orientation: Neutro/Neutral

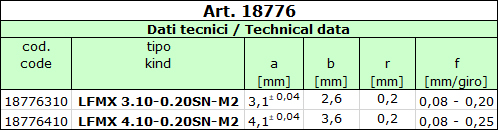

GB Code UM Description Note
18776310 NR INSERTS LFMX 3.10-0.20SN-M2 T8330 P30, M25, K30
18776410 NR INSERTS LFMX 305600-N4 5735 T8330 P30, M25, K30

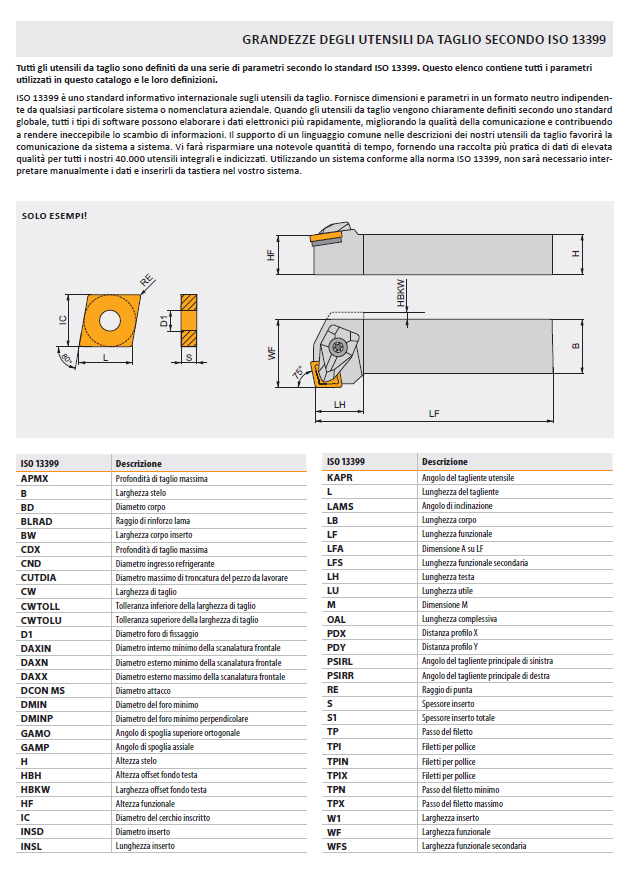

data sheet Insert LFMX SN-M2 T8330
GB Code Description
18737 XLCFN cutting-off toolholder blade
