Cod. 12608
Hand bottoming tap G, DIN 5157
Hand bottoming tap Dormer E119, cilindrical Gas threading G, for blind and through holes, DIN 5157. Material HSS with bright finish for tough materials. Item running out.
Code: 12608
Brand: DORMER PRAMET
Category: Taps
Type: GAS hand taps
Applications: click here
Hole: Passer-by and blind cyl. hole
Shank: cylindrical
Threading: G - Cylindrical GAS not dryseal thread
N° teeth in lead:
Tolerances: Non specificato
Coating: None
Material: HSS

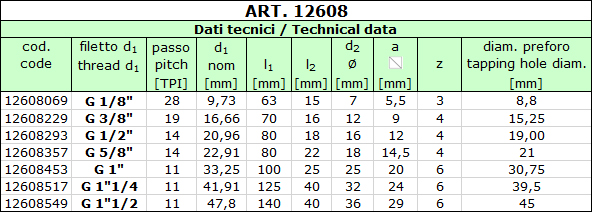

| GB Code | UM | Description | Note |
|---|---|---|---|
| 12608069 | NR | HAND TAPS E119 G 1/8" II DIN5157 * | |
| 12608229 | NR | HAND TAPS E119 G 3/8" II DIN5157 * | |
| 12608293 | NR | HAND TAPS E119 G 1/2" II DIN5157 * | |
| 12608357 | NR | HAND TAPS E119 G 5/8" II DIN5157 * | |
| 12608389 | NR | HAND TAPS E119 G 3/4" II DIN5157 * | |
| 12608453 | NR | HAND TAPS E119 G 1" II DIN5157 * | |
| 12608517 | NR | HAND TAPS E119 G 1"1/4 II DIN5157 * | |
| 12608549 | NR | HAND TAPS E119 G 1"1/2 II DIN5157 * |
