Cod. 41173

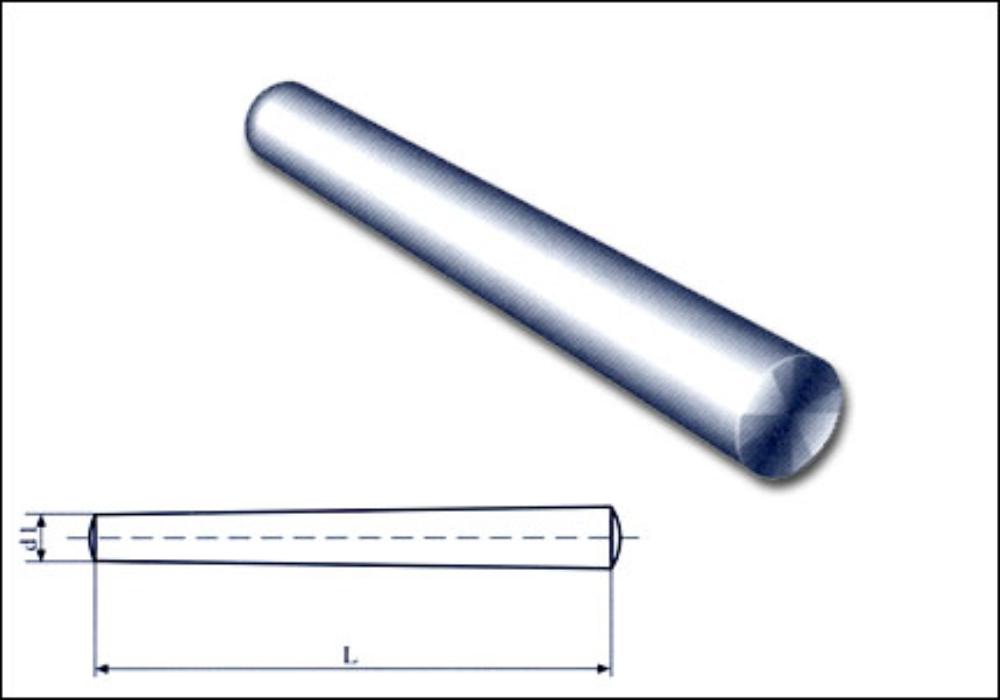

Conical pin, h10

Name: Gnutti Bortolo
Address: via Monsuello 34, Lumezzane, Lombardia, 25065, IT
Telephone: +390308926011

Not hardened conical pin, finishing turned, according to DIN 1B, UNI 129, ISO 2339 B, tolerance on diameter h10.
Taper 1:50, material high speed steel (AVP).

Code: 41173

Brand: GB

Category: Standardized elements for dies

Type: Pins

Order Print technical sheet

Articles

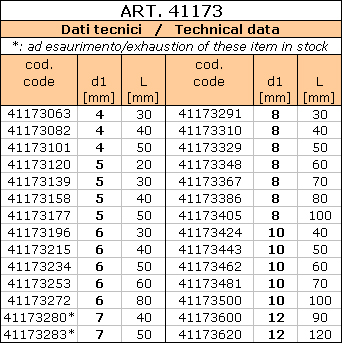

Data sheet

GB Code	UM	Description
41173063	NR	CONICAL PINS 4X 30 ISO2339B
41173082	NR	CONICAL PINS 4X 40 ISO2339B
41173101	NR	CONICAL PINS 4X 50 ISO2339B
41173120	NR	CONICAL PINS 5X 20 ISO2339B
41173139	NR	CONICAL PINS 5X 30 ISO2339B
41173158	NR	CONICAL PINS 5X 40 ISO2339B
41173177	NR	CONICAL PINS 5X 50 ISO2339B
41173196	NR	CONICAL PINS 6X 30 ISO2339B
41173215	NR	CONICAL PINS 6X 40 ISO2339B
41173234	NR	CONICAL PINS 6X 50 ISO2339B
41173253	NR	CONICAL PINS 6X 60 ISO2339B
41173272	NR	CONICAL PINS 6X 80 ISO2339B
41173280	NR	CONICAL PINS 7X 40 *
41173283	NR	CONICAL PINS 7X 50 *
41173291	NR	CONICAL PINS 8X 30 ISO2339B
41173310	NR	CONICAL PINS 8X 40 ISO2339B
41173329	NR	CONICAL PINS 8X 50 ISO2339B
41173348	NR	CONICAL PINS 8X 60 ISO2339B
41173367	NR	CONICAL PINS 8X 70 ISO2339B
41173386	NR	CONICAL PINS 8X 80 ISO2339B
41173405	NR	CONICAL PINS 8X100 ISO2339B
41173424	NR	CONICAL PINS 10X 40 ISO2339B
41173443	NR	CONICAL PINS 10X 50 ISO2339B
41173462	NR	CONICAL PINS 10X 60 ISO2339B
41173481	NR	CONICAL PINS 10X 70 ISO2339B
41173500	NR	CONICAL PINS 10X100 ISO2339B
41173600	NR	CONICAL PINS 12X 90 ISO2339B
41173620	NR	CONICAL PINS 12X120 ISO2339B
