Cod. 12863

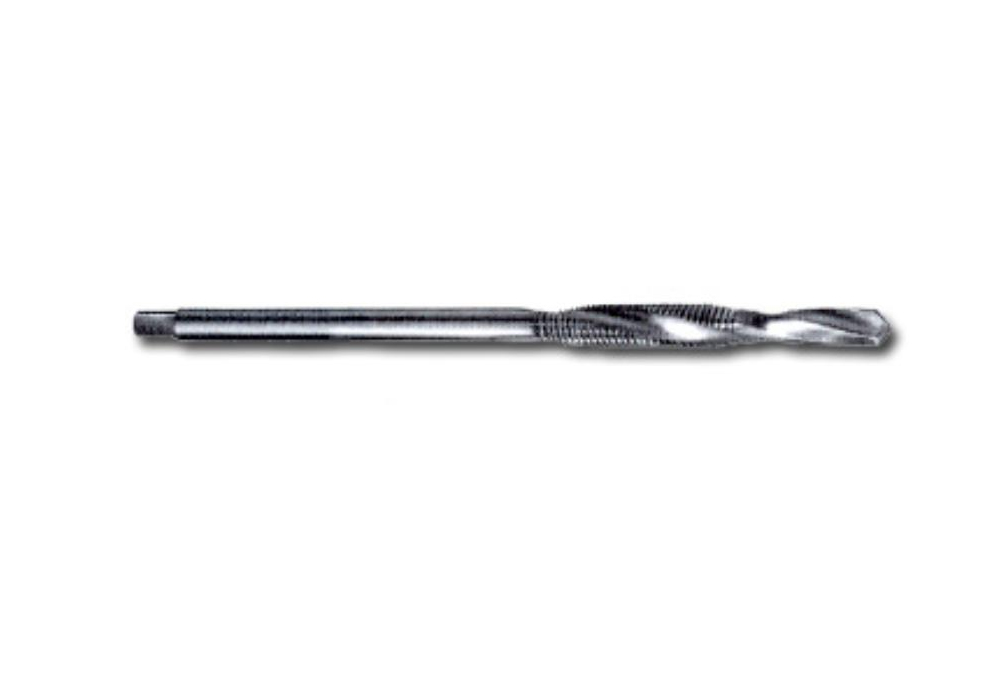

Combination drill tap M, chamfer D
Combination jobber drill tap, metric threading M, intermediate chamfer D, helix 15° for through holes: combination tool to produce a thread in one operation with the use of a hand-held power tool too. Material HSS-Co with bright surface for general use.
Code: 12863
Brand: GB
Category: Taps
Type: Combination drill taps

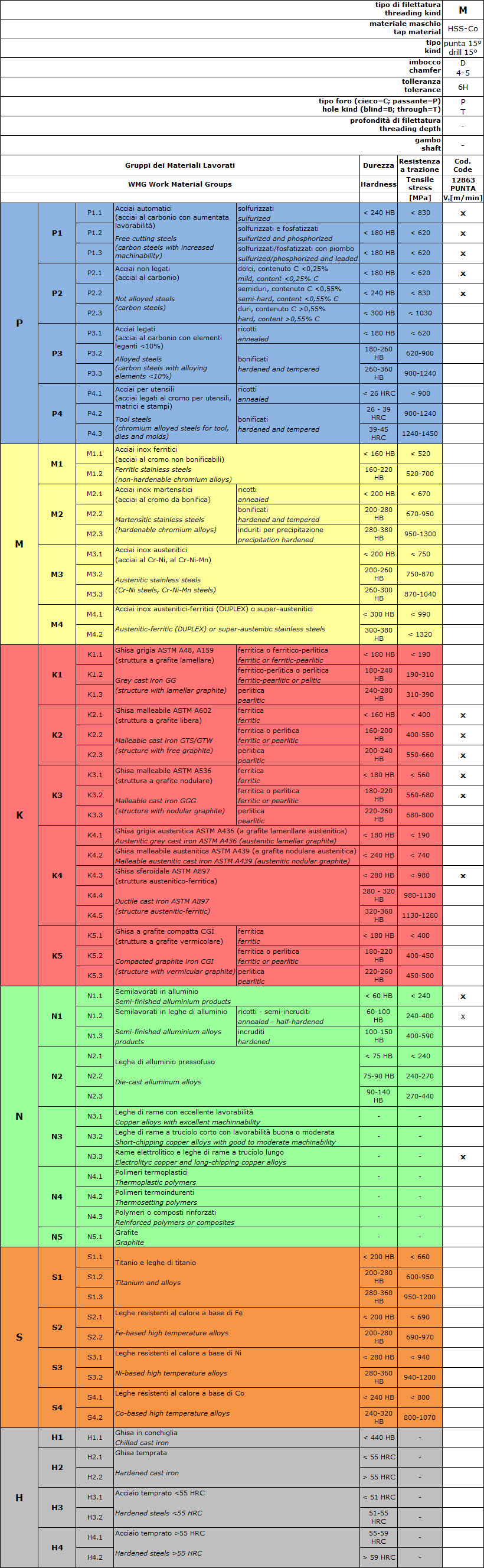

Applications: click here
Hole: Passer-by cylindrical hole
Shank: cylindrical
Threading: M - ISO metric coarse thread
N° teeth in lead:
Tolerances: ISO2 (6H)
Coating: None
Material: HSS-Co

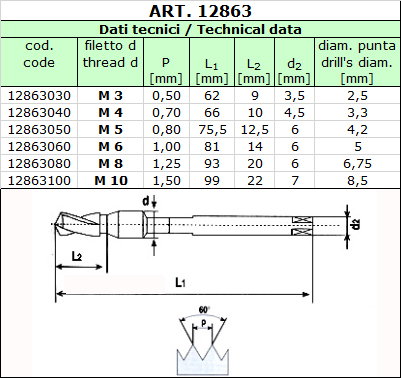

| GB Code | UM | Description | Note |
|---|---|---|---|
| 12863030 | NR | DRILL TAPS 12863 M 3,0X0,50 D 15° HSS-Co | |
| 12863040 | NR | DRILL TAPS 12863 M 4,0X0,70 D 15° HSS-Co | |
| 12863050 | NR | DRILL TAPS 12863 M 5,0X0,80 D 15° HSS-Co | |
| 12863060 | NR | DRILL TAPS 12863 M 6,0X1,00 D 15° HSS-Co | |
| 12863080 | NR | DRILL TAPS 12863 M 8,0X1,25 D 15° HSS-Co | |
| 12863100 | NR | DRILL TAPS 12863 M 10,0X1,50 D 15° HSS-Co |
