Cod. 13278
Valves round die F19

Name: Gnutti Bortolo
Address: via Monsuello 34, Lumezzane, Lombardia, 25065, IT
Telephone: +390308926011

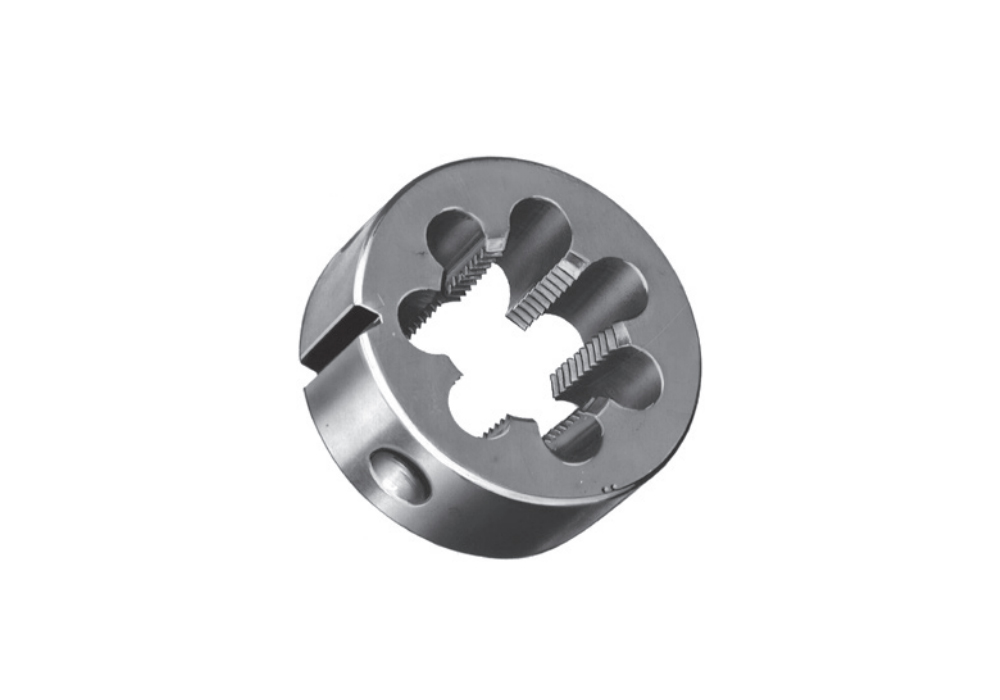

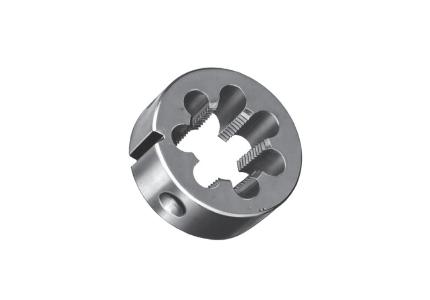

Valves round die with threading F19, short chamfer 1 turn for brass machining. Material HSS.

Code: 13278

Brand: GB

Category: Dies

Type: Valves dies

Threading: F19 - 19 Thread

Tolerances: Non specificato

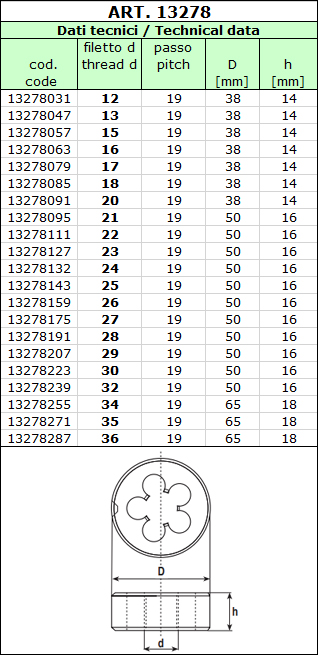

GB Code	UM	Description
13278031	NR	DIES 13278 12X19 D.38 BRASS
13278047	NR	DIES 13278 13X19 D.38 BRASS
13278057	NR	DIES 13278 15X19 D.38 BRASS
13278063	NR	DIES 13278 16X19 D.38 BRASS
13278079	NR	DIES 13278 17X19 D.38 BRASS
13278085	NR	DIES 13278 18X19 D.38 BRASS
13278091	NR	DIES 13278 20X19 D.38 BRASS
13278095	NR	DIES 13278 21X19 D.50 BRASS
13278111	NR	DIES 13278 22X19 D.50 BRASS
13278127	NR	DIES 13278 23X19 D.50 BRASS
13278132	NR	DIES 13278 24X19 D.50 BRASS
13278143	NR	DIES 13278 25X19 D.50 BRASS
13278159	NR	DIES 13278 26X19 D.50 BRASS
13278175	NR	DIES 13278 27X19 D.50 BRASS
13278191	NR	DIES 13278 28X19 D.50 BRASS
13278207	NR	DIES 13278 29X19 D.50 BRASS
13278223	NR	DIES 13278 30X19 D.50 BRASS
13278239	NR	DIES 13278 32X19 D.50 BRASS
13278255	NR	DIES 13278 34X19 D.65 BRASS
13278271	NR	DIES 13278 35X19 D.65 BRASS +
13278287	NR	DIES 13278 36X19 D.65 BRASS
